3. Vectors and Matrices#
Computational Methods, Oct. 2022, Kenji Doya
Here we work with vectors and matrices, and get acquainted with concepts in linear algebra by computing.
import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
Numpy ndarray as vector and matrix#
You can create a matrix from a nested list.
A = np.array([[1, 2, 3], [4, 5, 6]])
A
array([[1, 2, 3],
[4, 5, 6]])
You cam also create a matrix by stacking arrays vertically
b = np.array([1, 2, 3])
np.vstack((b, 2*b))
array([[1, 2, 3],
[2, 4, 6]])
# another way of stacking row vectors
np.r_[[b, 2*b]]
array([[1, 2, 3],
[2, 4, 6]])
or by combining arrays as column vectors
np.c_[b, 2*b]
array([[1, 2],
[2, 4],
[3, 6]])
You can also create an arbitrary matrix by list comprehension.
np.array([[10*i + j for j in range(3)] for i in range(2)])
array([[ 0, 1, 2],
[10, 11, 12]])
Here are functions and attributes to check the type and shape of a vector or matrix.
len(A) # in the outmost level
2
A.shape # each dimension
(2, 3)
A.size # total items
6
A.ndim # dimension
2
A.dtype
dtype('int64')
A 2D numpy array is internally a linear sequence of data.
ravel( )
geves its flattened representation.
A.ravel()
array([1, 2, 3, 4, 5, 6])
The result of reshaping reflect this internal sequence.
A.reshape(3, 2)
array([[1, 2],
[3, 4],
[5, 6]])
You can excange rows and columns by transpose .T
A.T
array([[1, 4],
[2, 5],
[3, 6]])
adressing components by [ ]#
A[1] # second row
array([4, 5, 6])
A[:,1] # second column
array([2, 5])
A[:,::-1] # columns in reverse order
array([[3, 2, 1],
[6, 5, 4]])
You can specify arbitrary order by a list of indices.
A[[1,0,1]] # rows
array([[4, 5, 6],
[1, 2, 3],
[4, 5, 6]])
A[:, [1,2,1,0]] # columns
array([[2, 3, 2, 1],
[5, 6, 5, 4]])
A[[1,0,1], [1,2,0]] # [A[1,1], A[0,2], A[1,0]]
array([5, 3, 4])
common matrices#
np.zeros((2,3))
array([[0., 0., 0.],
[0., 0., 0.]])
np.ones((2,3))
array([[1., 1., 1.],
[1., 1., 1.]])
np.eye(3)
array([[1., 0., 0.],
[0., 1., 0.],
[0., 0., 1.]])
np.random.randn(2,3) # normal distribution
array([[ 0.95392355, 0.81268671, 0.78161453],
[-0.75785215, -0.65011917, 0.53010265]])
np.random.random(size=(2,3)) # uniform in [0, 1)
array([[0.39669763, 0.71095786, 0.85234182],
[0.21627853, 0.78260765, 0.83203645]])
np.random.uniform(-1, 1, (2,3)) # uniform in [-1, 1)
array([[ 0.10499127, -0.89196475, -0.88101901],
[-0.16605801, -0.84557486, -0.96475598]])
np.random.randint(-3, 3, size=(2,3)) # integers -3,...,2
array([[0, 2, 0],
[0, 2, 0]])
np.empty((2,3), dtype=int) # allocate without initialization
array([[ 4592229839186427184, -4617162713120582962, -4617261303494459526],
[-4628221146057886784, -4617580556105657132, -4616507067949115602]])
Vectors and dot product#
A vector can represent:
a point in n-dimensional space
a movement in n-dimensional space
The dot product (or inner product) of two vectors
\(\b{x} = (x_1,...,x_n)\) and \(\b{y} = (y_1,...,y_n)\)
is defined as
$\( \b{x} \cdot \b{y} = x_1 y_1 + ... + x_n y_n = \sum_{i=1}^n x_i y_i \)$
The inner product measures how two vectors match up, giving $\( -||\b{x}||\,||\b{y}|| \le \b{x} \cdot \b{y} \le ||\b{x}||\,||\b{y}|| \)$ with the maximum when two vectors line up, zero when two are orthogonal.
The length (or norm) of the vector is defined as
$\( ||\b{x}|| = \sqrt{\sum_{i=1}^n x_i^2} = \sqrt{\b{x} \cdot \b{x}} \)$
x = np.array([0, 1, 2])
y = np.array([3, 4, 5])
print( x * y) # component-wise product
[ 0 4 10]
There are different ways to compute a dot product of vectors:
print( np.inner(x, y))
print( np.dot(x, y))
print( x.dot(y))
print( x @ y)
14
14
14
14
Matrices and matrix product#
A matrix can represent
a set of vectors
time series of vectors
2D image data,
…
The matrix product \(AB\) is a matrix made of the inner products of the rows of \(A\) and the columns of \(B\).
For
\(A = \left(\begin{array}{cc} a & b\\ c & d\end{array}\right)\)
and
\(B = \left(\begin{array}{cc} e & f\\ g & h\end{array}\right)\),
the matrix product is
$\( AB = \left(\begin{array}{cc} ae+bg & af+bh \\ ce+dg & cf+dh\end{array}\right). \)$
A = np.array([[0, 1], [2, 3]])
print(A)
B = np.array([[3, 2], [1, 0]])
print(B)
[[0 1]
[2 3]]
[[3 2]
[1 0]]
print( A * B) # component-wise
print( np.inner(A, B)) # row by row
[[0 2]
[2 0]]
[[ 2 0]
[12 2]]
There are several ways for a matrix product.
print( np.dot(A, B))
print( A.dot(B))
print( A @ B) # new since Pyton 3.5
[[1 0]
[9 4]]
[[1 0]
[9 4]]
[[1 0]
[9 4]]
Matrix and vector space#
A matrix product can mean:
transformation to another vector space
movement in the space
The product of a 2D matrix \(A\) and a vector \(\b{x}\) is given as $\( A \b{x} = \mat{ a & b\\ c & d}\mat{x \\ y} = \mat{ax+by\\ cx+dy}. \)\( Sepcifically for unit vectors \)\( A \mat{1 \\ 0} = \mat{ a \\ c } \mbox{and } A \mat{0 \\ 1} = \mat{ b \\ d}\)\( meaning that each column of \)A$ reporesents how a unit vector in each axis is transformed.

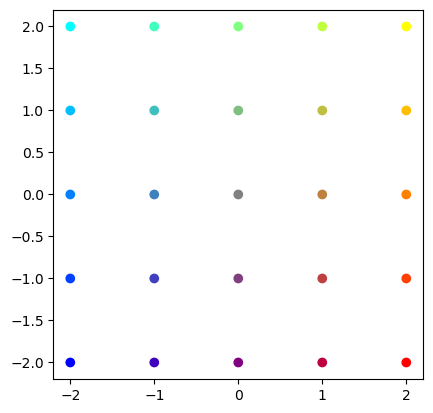

# Prepare a set of points in colors
s = 2 # grid size
x = np.arange(-s, s+1)
X1, X2 = np.meshgrid(x, x)
# 2xm matrix of points
X = np.vstack((np.ravel(X1), np.ravel(X2)))
print(X)
# red-blue for x, green for y
C = (np.vstack((X[0,:], X[1,:], -X[0,:])).T + s)/(2*s)
plt.scatter(X[0,:], X[1,:], c=C)
p = plt.axis('square')
[[-2 -1 0 1 2 -2 -1 0 1 2 -2 -1 0 1 2 -2 -1 0 1 2 -2 -1 0 1
2]
[-2 -2 -2 -2 -2 -1 -1 -1 -1 -1 0 0 0 0 0 1 1 1 1 1 2 2 2 2
2]]
![_images/59e7118201589be23e6aeb47b29867b8f60305822dec7fe31ab51f733fa72f93.png](_images/59e7118201589be23e6aeb47b29867b8f60305822dec7fe31ab51f733fa72f93.png)
# See how those points are transformed by a matrix
a = 1
A = np.random.random((2, 2))*2*a - a # uniform in [-a, a]
print(A)
AX = A @ X
plt.scatter(AX[0,:], AX[1,:], c=C)
p = plt.axis('equal')
[[ 0.82096631 0.20294252]
[-0.55931851 -0.56705153]]
![_images/574b1b73902ad89c94c40701bd8469bf89125452fffc8d419c240e5670a678cf.png](_images/574b1b73902ad89c94c40701bd8469bf89125452fffc8d419c240e5670a678cf.png)
Determinant and inverse#
The transformed space are expanded, shrunk, or flattened.
The determinant of a square matrix measures the expansion of the volume.
For a 2 by 2 matrix
\(A = \left(\begin{array}{cc} a & b\\ c & d\end{array}\right)\),
the determinant is computed by
$\(\det A = ad - bc.\)$
You can use linalg.det()
for any matrix.
A = np.array([[1, 2], [3, 4]])
np.linalg.det(A)
-2.0000000000000004
If \(\det A \ne 0\), a matrix is called regular, non-singular, or invertible.
The inverse \(A^{-1}\) of a square matrix \(A\) is defined as a matrix satisfying
$\( AX = XA = I \)\(
where \)I$ is the identity matrix.
Ainv = np.linalg.inv(A)
print(Ainv)
print( A @ Ainv)
print( Ainv @ A)
[[-2. 1. ]
[ 1.5 -0.5]]
[[1.0000000e+00 0.0000000e+00]
[8.8817842e-16 1.0000000e+00]]
[[1.00000000e+00 0.00000000e+00]
[1.11022302e-16 1.00000000e+00]]
Solving linear algebraic equations#
Many problems are formed as a set of linear equations: $\( a_{11}x_1 + a_{12}x_2 + \cdots + a_{1n}x_n = b_1 \)\( \)\( \vdots \)\( \)\( a_{m1}x_1 + a_{m2}x_2 + \cdots + a_{mn}x_n = b_m \)\( This can be expressed by a matrix-vector equation \)\( A\b{x} =\b{b} \)\( where \)\( A = \left(\begin{array}{ccc} a_{11} & \cdots & a_{1n}\\ \vdots & & \vdots\\ a_{m1} & \cdots & a_{mn}\end{array}\right), \quad \b{x} = \left(\begin{array}{c} x_1\\ \vdots\\ x_n\end{array}\right), \quad \b{b} = \left(\begin{array}{c} b_1\\ \vdots\\ b_m\end{array}\right). \)\( If \)m=n\( and \)A\( is regular, the solution is given by \)\( \b{x} = A^{-1} \b{b}. \)$
A = np.array([[1., 2], [3, 4]])
b = np.array([1, 0])
Ainv = np.linalg.inv(A)
print("Ainv =", Ainv)
x = Ainv @ b
print('x = Ainv b =', x)
print('Ax =', A @ x)
Ainv = [[-2. 1. ]
[ 1.5 -0.5]]
x = Ainv b = [-2. 1.5]
Ax = [1.0000000e+00 8.8817842e-16]
If \(A^{-1}\) is used just once, it is more efficient to use a linear euqation solver function.
x = np.linalg.solve(A, b)
print('x = ', x)
x = [-2. 1.5]
Eigenvalues and eigenvectors#
With a transformation by a symmetrix matrix \(A\), some vectors keep its own direction. Such a vector is called an eigenvector and its scaling coefficient is called the eigenvalue.
Eigenvalues and eigenvectors are derived by solving the equation
$\( A\b{x} = \lambda \b{x} \)\(
which is equivalent to \) A\b{x} - \lambda \b{x} = (A - \lambda I)\b{x} = 0.\(
Eigenvalues are derived by solving a polynomial equation
\)\( \det (A - \lambda I) = 0 \)$
You can use linalg.eig()
function to numerically derive eigenvalues \(\b{\lambda} = (\lambda_1,...,\lambda_n)\) and a matrix of eigenvectors in columns \(V = (\b{v}_1,...,\b{v}_n)\).
A = np.array([[1, 2], [1, 0.5]])
print(A)
lam, V = np.linalg.eig(A)
print(lam)
print(V)
[[1. 2. ]
[1. 0.5]]
[ 2.18614066 -0.68614066]
[[ 0.86011126 -0.76454754]
[ 0.51010647 0.64456735]]

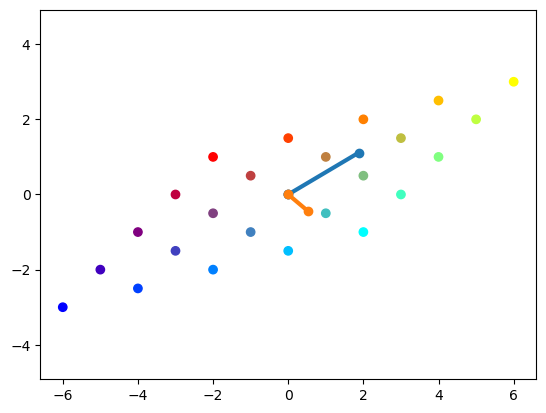

# colorful grid from above
AX = A @ X
plt.scatter(AX[0,:], AX[1,:], c=C)
# Plot eiven vectors scaled by eigen values
for i in range(2):
plt.plot( [0, lam[i]*V[0,i]], [0, lam[i]*V[1,i]], 'o-', lw=3)
p = plt.axis('equal')
![_images/eea8d37d02052c1c865ce3c69c80d46bf1406f92c7486a8122ccc003f3bbaa96.png](_images/eea8d37d02052c1c865ce3c69c80d46bf1406f92c7486a8122ccc003f3bbaa96.png)
Eigendecomposition#
For a square matrix \(A\), consider a matrix consisting of its eigenvalues on the diagonal $\( \Lambda = \mbox{diag}(\lambda_1, \cdots, \lambda_n) \)\( and another matrix made of their eigenvectors in columns \)\( V = (\b{v}_1, \cdots, \b{v}_n). \)$
From $\( AV = (\lambda_1 \b{v}_1, \cdots, \lambda_n \b{v}_n) = (\b{v}_1, \cdots, \b{v}_n) \mat{\lambda_1 & & \\ & \ddots & \\ & & \lambda_n} = V \Lambda, \)\( if \)V\( is invertible, \)A\( can be represented as \)\( A = V \Lambda V^{-1}. \)$
This representation of a matrix is called eigendecomposition or spectral decomposition.
This representation is extremely useful in multiplying \(A\) many times as $\( A^k = V \Lambda^k V^{-1} = V \mbox{diag}(\lambda_1^k, \cdots, \lambda_n^k) V^{-1} \)$ requires only exponentials in the diagonal terms rather than repeated matrix multiplications.
It also helps intutitive understanding of how a point \(\b{x}\) transofrmed by \(A\) many times as \(A\b{x}, A^2\b{x}, A^3\b{x},...\) would move.
Covariance matrix#
For \(m\) samples of \(n\)-dimensional variable \( \b{x} = (x_1,..., x_n)\) we usuall create a data matrix $\( X = \left(\begin{array}{ccc} x_1^1 & \cdots & x^1_n\\ \vdots & & \vdots\\ x^m_1 & \cdots & x^m_n\end{array}\right).\)$
The covariance \(c_{ij}\) of the components \(x_i\) and \(x_j\) represents how the two variables change togher around the mean: $\( \bar{x}_i = \frac{1}{m} \sum_{k=1}^m x_i^k \)\( \)\( c_{ij} = \frac{1}{m-1} \sum_{k=1}^m (x_i^k - \bar{x}_i)(x_j^k - \bar{x}_j) \)$
The covariance matrix \(C\) consists of the covariances of all pairs of components $\( C = \begin{pmatrix} c_{11} & \cdots & c_{1n}\\ \vdots & & \vdots\\ c_{n1} & \cdots & c_{nn}\end{pmatrix} = \frac{1}{m-1} \sum_{k=1}^m (\b{x}^k - \bar{\b{x}})^T(\b{x}^k - \bar{\b{x}}) \)\( where \)\bar{x}\( is the mean vector \)\( \bar{\b{x}} = (\bar{x}_1,..., \bar{x}_n) = \frac{1}{m} \sum_{j=1}^m \b{x}^k \)$

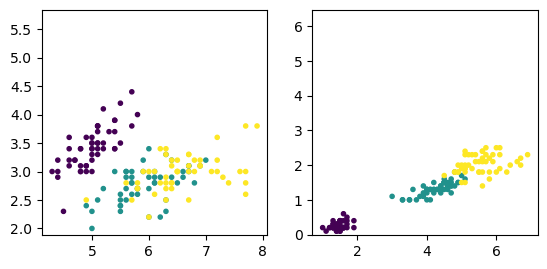

# Read in the iris data
X = np.loadtxt('data/iris.txt', delimiter=',')
Y = X[:,-1] # flower type
X = X[:,:4]
m, n = X.shape
plt.subplot(1, 2, 1)
plt.scatter(X[:,0], X[:,1], c=Y, marker='.')
plt.axis('square')
plt.subplot(1, 2, 2)
plt.scatter(X[:,2], X[:,3], c=Y, marker='.')
plt.axis('square');
![_images/0fb1198ce0b0adfc62bceb595c16ad82884e930aacb4dbdbf7c3b04338ac3738.png](_images/0fb1198ce0b0adfc62bceb595c16ad82884e930aacb4dbdbf7c3b04338ac3738.png)
xbar = np.mean(X, axis=0)
print("xbar =", xbar)
dX = X - xbar # deviation from the mean
C = (dX.T @ dX)/(m-1)
print("C =", C)
# or using the built-in function
np.cov(X, rowvar=False)
xbar = [5.84333333 3.054 3.75866667 1.19866667]
C = [[ 0.68569351 -0.03926846 1.27368233 0.5169038 ]
[-0.03926846 0.18800403 -0.32171275 -0.11798121]
[ 1.27368233 -0.32171275 3.11317942 1.29638747]
[ 0.5169038 -0.11798121 1.29638747 0.58241432]]
array([[ 0.68569351, -0.03926846, 1.27368233, 0.5169038 ],
[-0.03926846, 0.18800403, -0.32171275, -0.11798121],
[ 1.27368233, -0.32171275, 3.11317942, 1.29638747],
[ 0.5169038 , -0.11798121, 1.29638747, 0.58241432]])
Principal component analysis (PCA)#
In taking a grasp of high-dimensional data, it is often useful to project the data onto a subspace where the data vary most.
To do that, we first take the covariance matrix \(C\) of the data, compute its eigenvalues \(\lambda_i\) and eigenvectors \(\b{v}_i\), and project the data onto the subspace spanned by the eigenvectors with largest eigen values.
The eigenvectors \(\b{v}_i\) of the covariance matrix is called principal component vectors, ordered by the magnitude of their eigenvalues.
Each data point \(\b{x}\) is projected to the principal component vectors \((\b{v}_1\cdot\b{x}, \b{v}_2\cdot\b{x},...)\) for visualization.
lam, V = np.linalg.eig(C)
print('lam, V = ', lam, V)
# it is not guaranteed that the eigenvalues are sorted, so sort them
ind = np.argsort(-lam) # indices for sorting, descending order
lams = lam[ind]
Vs = V[:,ind]
print('lams, Vs = ', lams, Vs)
lam, V = [4.22484077 0.24224357 0.07852391 0.02368303] [[ 0.36158968 -0.65653988 -0.58099728 0.31725455]
[-0.08226889 -0.72971237 0.59641809 -0.32409435]
[ 0.85657211 0.1757674 0.07252408 -0.47971899]
[ 0.35884393 0.07470647 0.54906091 0.75112056]]
lams, Vs = [4.22484077 0.24224357 0.07852391 0.02368303] [[ 0.36158968 -0.65653988 -0.58099728 0.31725455]
[-0.08226889 -0.72971237 0.59641809 -0.32409435]
[ 0.85657211 0.1757674 0.07252408 -0.47971899]
[ 0.35884393 0.07470647 0.54906091 0.75112056]]

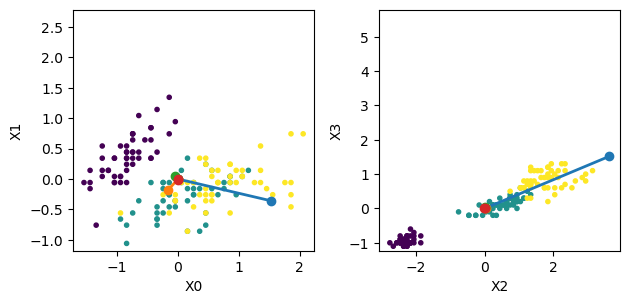

Let us see the principal component vectors in the original space.
zero = np.zeros(n)
# first two components
plt.subplot(1, 2, 1)
plt.scatter(dX[:,0], dX[:,1], c=Y, marker='.')
for i in range(4):
plt.plot( [0, lams[i]*Vs[0,i]], [0, lams[i]*Vs[1,i]], 'o-', lw=2)
plt.setp(plt.gca(), xlabel='X0', ylabel='X1')
plt.axis('square')
# last two components
plt.subplot(1, 2, 2)
plt.scatter(dX[:,2], dX[:,3], c=Y, marker='.')
for i in range(4):
plt.plot( [0, lams[i]*Vs[2,i]], [0, lams[i]*Vs[3,i]], 'o-', lw=2)
plt.setp(plt.gca(), xlabel='X2', ylabel='X3')
plt.axis('square')
plt.tight_layout() # adjust space
![_images/668ae866719221e3d3666b2552165a9ab7d2c70ef1e65398ba7a743da6d0876e.png](_images/668ae866719221e3d3666b2552165a9ab7d2c70ef1e65398ba7a743da6d0876e.png)

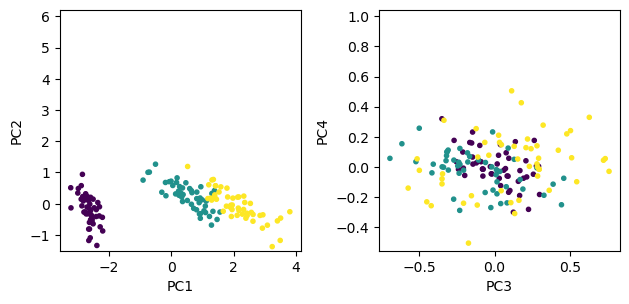

Now let us project the 4D data onto the space spanned by the eigenvectors.
Z = dX @ Vs
plt.subplot(1, 2, 1)
plt.scatter(Z[:,0], Z[:,1], c=Y, marker='.')
plt.setp(plt.gca(), xlabel='PC1', ylabel='PC2')
plt.axis('square')
plt.subplot(1, 2, 2)
plt.scatter(Z[:,2], Z[:,3], c=Y, marker='.')
plt.setp(plt.gca(), xlabel='PC3', ylabel='PC4')
plt.axis('square')
plt.tight_layout() # adjust space
![_images/98d5912f015ab7fa4b67dfa516854e7642380cde54b495730d3b3ac0faac7f6f.png](_images/98d5912f015ab7fa4b67dfa516854e7642380cde54b495730d3b3ac0faac7f6f.png)
Singular value decomposition (SVD)#
For a \((m\times n)\) matrix \(A\), a non-negative value \(\sigma>0\) satisfying $\( A \b{v} = \sigma \b{u}\)\( \)\( A^T \b{u} = \sigma \b{v}\)\( for unit vectors \)||\b{u}||=||\b{v}||=1\( is called the *singular value*. \)\b{u}\( and \)\b{v}$ are called left- and right-singular vectors.
Singular value decomposition (SVD) of a \((m\times n)\) matrix \(A\) is $\( A = U S V^T = \sum_i \sigma_i \b{u}_i \b{v}_i^T \)\( where \)S=\mbox{diag}(\sigma_1,…,\sigma_k)\( is a diagonal matrix made of \)k=\min(m,n)\( singular values, \)U=(\b{u}_1,…,\b{u}_k)\( is a matrix made of orthogonal left-singular vectors, and \)V=(\b{v}_1,…,\b{v}_k)$ is a matrix made of orthogonal right-singular vectors.
SVD represents a matrix by a weighted sum of outer products of column vectors \(\b{u}_i\) and row vectors \(\b{v}_i\), such as spatial patterns mixed by different time courses.
A = np.array([[0,1,2,3,4], [5,4,3,2,1], [1,3,2,4,3]])
print(A)
U, S, Vt = np.linalg.svd(A, full_matrices=False)
#V = Vt.T
print(U, S, Vt)
U @ np.diag(S) @ Vt
[[0 1 2 3 4]
[5 4 3 2 1]
[1 3 2 4 3]]
[[-0.45492565 0.62035527 -0.63890687]
[-0.65816895 -0.71750629 -0.22803148]
[-0.59988023 0.3167713 0.7347106 ]] [9.99063921 4.76417727 1.22055035] [[-0.38943704 -0.48918213 -0.40879452 -0.50853961 -0.42815201]
[-0.686532 -0.27273461 -0.05840793 0.35538947 0.56971614]
[-0.33218358 0.53508568 -0.40349583 0.46377343 -0.47480808]]
array([[4.8756825e-15, 1.0000000e+00, 2.0000000e+00, 3.0000000e+00,
4.0000000e+00],
[5.0000000e+00, 4.0000000e+00, 3.0000000e+00, 2.0000000e+00,
1.0000000e+00],
[1.0000000e+00, 3.0000000e+00, 2.0000000e+00, 4.0000000e+00,
3.0000000e+00]])

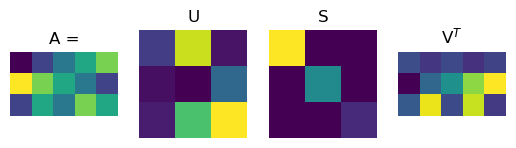

plt.subplot(1,4,1)
plt.imshow(A)
plt.title('A ='); plt.axis('off')
plt.subplot(1,4,2)
plt.imshow(U)
plt.title('U'); plt.axis('off')
plt.subplot(1,4,3)
plt.imshow(np.diag(S))
plt.title('S'); plt.axis('off')
plt.subplot(1,4,4)
plt.imshow(Vt)
plt.title('V$^T$'); plt.axis('off');
![_images/ba26f7870514cb2e8f444c77edc908ae30fea6d4be8bf5b06d6e353d035e8cdc.png](_images/ba26f7870514cb2e8f444c77edc908ae30fea6d4be8bf5b06d6e353d035e8cdc.png)

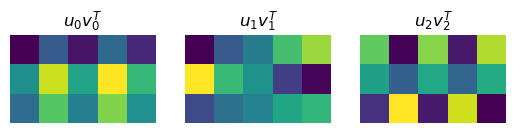

k = 3
for i in range(k):
plt.subplot(1,k,i+1)
plt.imshow(np.outer(U[:,i], Vt[i,:]))
plt.title('$u_{0} v^T_{0}$'.format(i))
plt.axis('off');
![_images/cc7b5773f008a4dac9233cffd23fce13490bafa9fa3c90f72c384d073d0a004b.png](_images/cc7b5773f008a4dac9233cffd23fce13490bafa9fa3c90f72c384d073d0a004b.png)
PCA by SVD#
From \(X = U SV^T\) and the orothonormal construction of \(U\) and \(V\), we can see \(C = \frac{1}{m-1}X^T X = \frac{1}{m-1}V S^2 V^T\) and \(C\b{v}_i = \frac{1}{m-1}\sigma_i^2\b{v}_i\).
Thus columns of \(V\) are principal component vectors and \(\frac{\sigma_i^2}{m-1}\) are their eigenvalues.
# iris data
print('by covariance:', lams, Vs) # computed by eig of covariance matrix
U, S, Vt = np.linalg.svd(dX, full_matrices=False)
print('by SVD:', S**2/(m-1), Vt.T)
by covariance: [4.22484077 0.24224357 0.07852391 0.02368303] [[ 0.36158968 -0.65653988 -0.58099728 0.31725455]
[-0.08226889 -0.72971237 0.59641809 -0.32409435]
[ 0.85657211 0.1757674 0.07252408 -0.47971899]
[ 0.35884393 0.07470647 0.54906091 0.75112056]]
by SVD: [4.22484077 0.24224357 0.07852391 0.02368303] [[ 0.36158968 -0.65653988 0.58099728 0.31725455]
[-0.08226889 -0.72971237 -0.59641809 -0.32409435]
[ 0.85657211 0.1757674 -0.07252408 -0.47971899]
[ 0.35884393 0.07470647 -0.54906091 0.75112056]]
Appendix: Eigen values of a 2x2 matrix#
Let us take the simplest and the most important case of 2 by 2 matrix $\( A = \pmatrix{a & b \\ c & d}. \)$
We can analytically derive the eivenvalues from $\( \det (A - \lambda I) = (a-\lambda)(d-\lambda) - bc = 0 \)\( as \)\( \lambda = \frac{a+d}{2} \pm \sqrt{\frac{(a-d)^2}{4}+ bc}. \)$
The correctponding eigenvectors are not unique, but given by, for example, $\( \b{x} = \mat{b \\ \lambda - a}. \)$

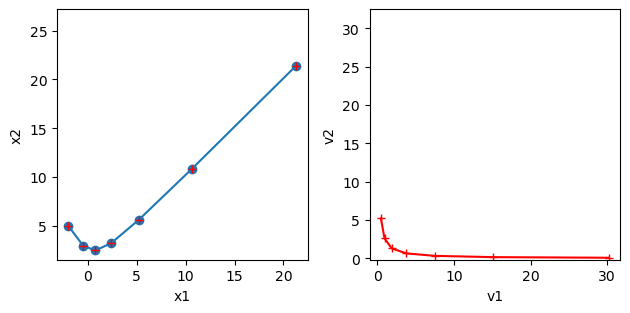

Real eigenvalues#
When \(\frac{(a-d)^2}{4}+ bc \ge 0\), \(A\) has two real eigenvalues \(\{\lambda_1, \lambda_2\}\) with corresponding eigenvectors \(\{ \b{v}_1, \b{v}_2 \}\)
The movement of a point \(\b{x}\) by \(A\) as \(A\b{x}, A^2\b{x}, A^3\b{x},...\) is composed of movements in the directions of the eigenvectors \(\{ \b{v}_1, \b{v}_2 \}\). It is convergent if \(|\lambda_i|<1\) and divergent if \(|\lambda_i|>1.\)
# take a 2x2 matrix
A = np.array([[1.5, 0.5], [1, 1]])
# check the eigenvalues and eigenvectors
L, V = np.linalg.eig(A)
print("L =", L)
print("V = ", V)
# take a point and see how it moves
K = 7 # steps
x = np.zeros((2, K))
x[:,0] = [-2, 5]
for k in range(K-1):
x[:,k+1] = A @ x[:,k] # x_{k+1} = A x_k
# plot the trajectory
plt.subplot(1,2,1)
plt.plot( x[0], x[1], 'o-')
plt.axis('square'); plt.xlabel("x1"); plt.ylabel("x2");
# In the eigenspace
y = np.zeros((2, K))
y[:,0] = np.linalg.inv(V) @ x[:,0] # map to eigenspace
for k in range(K-1):
y[:,k+1] = L*y[:,k] # z_{k+1} = L z_k
plt.subplot(1,2,2)
plt.plot( y[0], y[1], 'r+-')
plt.axis('square'); plt.xlabel("v1"); plt.ylabel("v2");
# Conver back to the original space
plt.subplot(1,2,1)
xv = (V @ y).real
plt.plot( xv[0], xv[1], 'r+')
plt.tight_layout(); # adjust the space
L = [2. 0.5]
V = [[ 0.70710678 -0.4472136 ]
[ 0.70710678 0.89442719]]
![_images/936427d2c7ad48ff3f7585247d43897b33adcc74436ec636972d32fc73f20922.png](_images/936427d2c7ad48ff3f7585247d43897b33adcc74436ec636972d32fc73f20922.png)
Complex eigenvalues#
When \(\frac{(a-d)^2}{4}+ bc < 0\), \(A\) has a pair of complex eigenvalues $\( \lambda_1 = \alpha + i\beta \mbox{ and } \lambda_2 = \alpha - i\beta \)\( where \)\( \alpha = \frac{a+d}{2} \mbox{ and } \beta^2 = -\frac{(a-d)^2}{4}- bc \)\( with corresponding eigenvectors \)\( V = (\b{v}_1, \b{v}_2) = (\b{u}+i\b{w}, \b{u}-i\b{w}).\)$
By eigendecomposition \( A = V \Lambda V^{-1}, \) a point \(\b{x}\) is converted to points in a complex plane and multipled by a complex eigenvalue, which means rotation and scaling. Points in the complex plane are then converted back in a real vector spce by multiplication with \(V\).
To see the rotation and scaling more explicityly, we can represent \(\Lambda=\mat{\alpha+i\beta & 0 \\ 0 & \alpha-i\beta}\) as $\(\Lambda = U R U^{-1}\)\( where \)R\( is \)\( R = \mat{\alpha & -\beta \\ \beta & \alpha} = \mat{r\cos\theta & -r\sin\theta \\ r\sin\theta & r\cos\theta }.\)$
Here \(r=|\lambda|=\sqrt{\alpha^2+\beta^2}\) is the scaling factor and \(\theta\) is the angle of rotation.
We can choose \(U\) as $\( U = \frac{1}{2}\mat{1 & i \\ 1 & -i} \)\( such that \)VU = (\b{u}, -\b{w})\(. Then we have another decomposition of \)A\( as \)\( A = V \Lambda V^{-1} = V URU^{-1} V^{-1} = (\b{u}, -\b{w}) \mat{r\cos\theta & -r\sin\theta \\ r\sin\theta & r\cos\theta} (\b{u}, -\b{w})^{-1} \)$
# take a 2x2 matrix
A = np.array([[1, -1], [1, 0.5]])
# check the eigenvalues and eigenvectors
L, V = np.linalg.eig(A)
print("L =", L)
print("V = ", V)
# take a point and see how it moves
K = 7 # steps
x = np.zeros((2, K))
x[:,0] = [1, 0]
for k in range(K-1):
x[:,k+1] = A @ x[:,k] # x_{k+1} = A x_k
# plot the trajectory
plt.subplot(1,3,1)
plt.plot( x[0], x[1], 'o-')
plt.axis('square'); plt.xlabel("x1"); plt.ylabel("x2");
# In the eigenspace
z = np.zeros((2, K), dtype=complex)
z[:,0] = np.linalg.inv(V) @ x[:,0]
for k in range(K-1):
z[:,k+1] = L*z[:,k] # z_{k+1} = L z_k
plt.subplot(1,3,2)
plt.plot( z[0].real, z[0].imag, 'r+-')
plt.plot( z[1].real, z[1].imag, 'm+-')
plt.axis('square'); plt.xlabel("Real"); plt.ylabel("Imag");
# In the cos-sin space
VU = np.c_[V[:,0].real, -V[:,0].imag]
R = np.array([[L[0].real, -L[0].imag], [L[0].imag, L[0].real]])
print("R =", R)
print("VU =", VU)
y = np.zeros((2, K))
y[:,0] = np.linalg.inv(VU) @ x[:,0]
for k in range(K-1):
y[:,k+1] = R @ y[:,k] # y_{k+1} = R y_k
plt.subplot(1,3,3)
plt.plot( y[0], y[1], 'g*-')
plt.axis('square'); plt.xlabel("u"); plt.ylabel("-w");
# Conver back to the original space
plt.subplot(1,3,1)
xc = (V @ z).real
xr = VU @ y
plt.plot( xr[0], xr[1], 'g*')
plt.plot( xc[0], xc[1], 'r+')
plt.tight_layout(rect=[0, 0, 1.5, 1]); # fit in extra width
L = [0.75+0.96824584j 0.75-0.96824584j]
V = [[-0.70710678+0.j -0.70710678-0.j ]
[-0.1767767 +0.6846532j -0.1767767 -0.6846532j]]
R = [[ 0.75 -0.96824584]
[ 0.96824584 0.75 ]]
VU = [[-0.70710678 -0. ]
[-0.1767767 -0.6846532 ]]
![_images/ba979eadd1a3e58b4d235d8fb3be8b862ff8619959954ea322bb2c1e9bdb75f2.png](_images/ba979eadd1a3e58b4d235d8fb3be8b862ff8619959954ea322bb2c1e9bdb75f2.png)

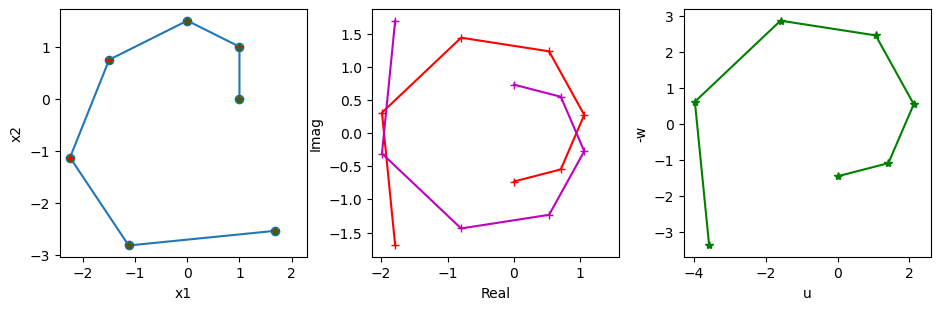

The trajectory in the complex space or the \((\b{u},-\b{w})\) space is a regular spirals, which is mapped to a skewed spiral in the original space.
