4. Vectors and Matrices

Here we work with vectors and matrices, and get acquainted with concepts in linear algebra by computing.

\[ % Latex macros \newcommand{\mat}[1]{\begin{pmatrix} #1 \end{pmatrix}} \newcommand{\p}[2]{\frac{\partial #1}{\partial #2}} \newcommand{\b}[1]{\boldsymbol{#1}} \newcommand{\w}{\boldsymbol{w}} \newcommand{\x}{\boldsymbol{x}} \newcommand{\y}{\boldsymbol{y}} \]

import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline

Numpy ndarray as vector and matrix

You can create a matrix from a nested list.

A = np.array([[1, 2, 3], [4, 5, 6]])
A

array([[1, 2, 3],
       [4, 5, 6]])

You cam create a matrix by stacking arrays vertically

b = np.array([1, 2, 3])
np.vstack((b, 2*b))

array([[1, 2, 3],
       [2, 4, 6]])

# another way of stacking row vectors
np.r_[[b, 2*b]]

array([[1, 2, 3],
       [2, 4, 6]])

To make a matrix from column vectors, although np.hstack just concatenates vectors

np.hstack((b, 2*b))

array([1, 2, 3, 2, 4, 6])

we can use np.c_[] expression.

np.c_[b, 2*b]

array([[1, 2],
       [2, 4],
       [3, 6]])

You can also create an arbitrary matrix by list comprehension.

np.array([[10*i + j for j in range(3)] for i in range(2)])

array([[ 0,  1,  2],
       [10, 11, 12]])

Creating common matrices

np.zeros((2,3))

array([[0., 0., 0.],
       [0., 0., 0.]])

np.ones((2,3), dtype=int)

array([[1, 1, 1],
       [1, 1, 1]])

np.eye(3)

array([[1., 0., 0.],
       [0., 1., 0.],
       [0., 0., 1.]])

C = np.random.randn(2,3)  # normal distribution

np.random.random((2,3))  # uniform in [0, 1)

array([[0.78846866, 0.51155929, 0.80859625],
       [0.73331004, 0.7570144 , 0.76123234]])

np.random.uniform(-10, 10, (2,3))  # uniform in [min, max]

array([[-0.163937  , -3.86815235, -8.91155692],
       [-8.84190728, -2.26554063,  2.44270389]])

np.random.randint(-3, 4, (2,3))  # integers -3,...,3

array([[ 3,  2,  0],
       [-3, -2, -3]])

np.empty((2,3))  # allocate without initialization

array([[-0.163937  , -3.86815235, -8.91155692],
       [-8.84190728, -2.26554063,  2.44270389]])

Checking and setting the type and shape

A.dtype

dtype('int64')

A.astype('float')

array([[1., 2., 3.],
       [4., 5., 6.]])

len(A)  # in the outmost level

2

A.shape  # each dimension

(2, 3)

A.size  # total items

6

A.ndim  # dimension

2

A 2D numpy array is internally a linear sequence of data.
ravel( ) geves its flattened representation.

A.ravel()

array([1, 2, 3, 4, 5, 6])

The result of reshaping reflect this internal sequence.

A.reshape(3, 2)

array([[1, 2],
       [3, 4],
       [5, 6]])

You can excange rows and columns by transpose .T

A.T

array([[1, 4],
       [2, 5],
       [3, 6]])

Adressing components by [ ]

A[1]  # second row

array([4, 5, 6])

A[:,1]  # second column

array([2, 5])

A[:,::-1]  # columns in reverse order

array([[3, 2, 1],
       [6, 5, 4]])

You can specify arbitrary order by a list of indices.

A[[1,0,1]]  # rows

array([[4, 5, 6],
       [1, 2, 3],
       [4, 5, 6]])

A[:, [1,2,1,0]]  # columns

array([[2, 3, 2, 1],
       [5, 6, 5, 4]])

A[[1,0,1], [1,2,0]]   # [A[1,1], A[0,2], A[1,0]]

array([5, 3, 4])

Vectors and dot product

A vector can represent:

• a point in n-dimensional space

• a movement in n-dimensional space

The dot product (or inner product) of two vectors \(\b{x} = (x_1,...,x_n)\) and \(\b{y} = (y_1,...,y_n)\) is defined as

\[ \b{x} \cdot \b{y} = x_1 y_1 + ... + x_n y_n = \sum_{i=1}^n x_i y_i \]

The inner product measures how two vectors match up, giving

\[ -||\b{x}||\,||\b{y}|| \le \b{x} \cdot \b{y} \le ||\b{x}||\,||\b{y}|| \]

with the maximum when two vectors line up, zero when two are orthogonal.

The length (or norm) of the vector is defined as

\[ ||\b{x}|| = \sqrt{\sum_{i=1}^n x_i^2} = \sqrt{\b{x} \cdot \b{x}} \]

x = np.array([0, 1, 2])
y = np.array([3, 4, 5])
print( x * y)  # component-wise product

[ 0  4 10]

There are different ways to compute a dot product of vectors:

print( np.sum(x*y))
print( np.inner(x, y))
print( np.dot(x, y))
print( x.dot(y))
print( x @ y)

14
14
14
14
14

The dot product of vectors normalized by their lengths

\[ \frac{\b{x} \cdot \b{y}}{||\b{x}||||\b{y}||} \]

represents the similarity of the directions, called direction cosine.

def dircos(v1, v2):
    """direction cosine of vectors"""
    return (v1 @ v2)/np.sqrt(v1@v1 * v2@v2)

dircos(x, y)

np.float64(0.8854377448471462)

dircos(x, 2*x)  # same direction

np.float64(1.0)

dircos(y, -3*y)  # opposite direction

np.float64(-1.0)

dircos(y, np.array([-3,1,1]))  # orthogonal

np.float64(0.0)

Matrices and matrix product

A matrix can represent

• a set of vectors

• time series of vectors

• 2D image data,

• …

The matrix product \(AB\) is a matrix made of the inner products of the rows of \(A\) and the columns of \(B\).
For \(A = \left(\begin{array}{cc} a & b\\ c & d\end{array}\right)\) and \(B = \left(\begin{array}{cc} e & f\\ g & h\end{array}\right)\), the matrix product is

\[\begin{split} AB = \left(\begin{array}{cc} ae+bg & af+bh \\ ce+dg & cf+dh\end{array}\right). \end{split}\]

A = np.array([[0, 1], [2, 3]])
print(A)
B = np.array([[3, 2], [1, 0]])
print(B)

[[0 1]
 [2 3]]
[[3 2]
 [1 0]]

print( A * B)  # component-wise
print( np.inner(A, B))  # row by row

[[0 2]
 [2 0]]
[[ 2  0]
 [12  2]]

There are several ways for a matrix product.

print( np.dot(A, B))
print( A.dot(B))
print( A @ B)  # new since Pyton 3.5

[[1 0]
 [9 4]]
[[1 0]
 [9 4]]
[[1 0]
 [9 4]]

Matrix and vector space

A matrix product can mean:

• transformation to another vector space

• movement in the space

The product of a 2D matrix \(A\) and a vector \(\b{x}\) is given as

\[\begin{split} A \b{x} = \mat{ a & b\\ c & d}\mat{x \\ y} = \mat{ax+by\\ cx+dy}. \end{split}\]

Specifically for unit vectors

\[\begin{split} A \mat{1 \\ 0} = \mat{ a \\ c } \mbox{and } A \mat{0 \\ 1} = \mat{ b \\ d}\end{split}\]

meaning that each column of \(A\) represents how a unit vector in each axis is transformed.

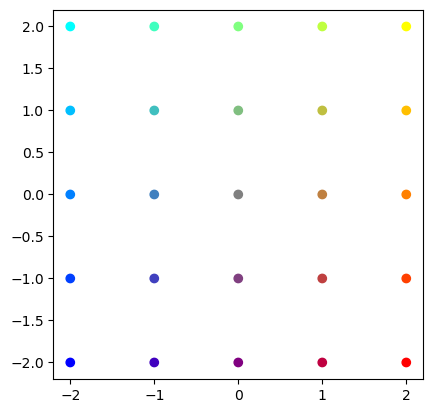

# Prepare a set of points in colors
s = 2  # grid size
x = np.arange(-s, s+1)
X1, X2 = np.meshgrid(x, x)
# 2xm matrix of points
X = np.vstack((np.ravel(X1), np.ravel(X2)))
print(X)
# red-blue for x, green for y
C = (np.vstack((X[0,:], X[1,:], -X[0,:])).T + s)/(2*s)
plt.scatter(X[0,:], X[1,:], c=C)
p = plt.axis('square')

[[-2 -1  0  1  2 -2 -1  0  1  2 -2 -1  0  1  2 -2 -1  0  1  2 -2 -1  0  1
   2]
 [-2 -2 -2 -2 -2 -1 -1 -1 -1 -1  0  0  0  0  0  1  1  1  1  1  2  2  2  2
   2]]

# See how those points are transformed by a matrix
a = 1
A = np.random.uniform(-a, a, (2,2))   # uniform in [-a, a]
print(A)
AX = A @ X
plt.scatter(AX[0,:], AX[1,:], c=C)
p = plt.axis('equal')

[[-0.77298925 -0.25589605]
 [ 0.99130337 -0.79957866]]

Determinant and inverse

The transformed space are expanded, shrunk, or flattened.
The determinant of a square matrix measures the expansion of the volume.
For a 2 by 2 matrix \(A = \left(\begin{array}{cc} a & b\\ c & d\end{array}\right)\),
the determinant is computed by

\[\det A = ad - bc.\]

You can use linalg.det() for any matrix.

A = np.array([[1, 2], [3, 4]])
np.linalg.det(A)

np.float64(-2.0000000000000004)

If \(\det A \ne 0\), a matrix is called regular, non-singular, or invertible.

The inverse \(A^{-1}\) of a square matrix \(A\) is defined as a matrix satisfying

\[ AX = XA = I \]

where \(I\) is the identity matrix.

A = np.random.uniform(-a, a, (2,2))   # uniform in [-a, a]
Ainv = np.linalg.inv(A)
print(Ainv)
print( A @ Ainv)
print( Ainv @ A)

[[-3.33258335  2.61760131]
 [-4.053755    1.95692848]]
[[1.00000000e+00 6.30002857e-18]
 [1.18336048e-16 1.00000000e+00]]
[[ 1.00000000e+00  8.94893589e-17]
 [-1.65065508e-16  1.00000000e+00]]

Solving linear algebraic equations

Many problems are formed as a set of linear equations:

\[ a_{11}x_1 + a_{12}x_2 + \cdots + a_{1n}x_n = b_1 \]

\[ \vdots \]

\[ a_{m1}x_1 + a_{m2}x_2 + \cdots + a_{mn}x_n = b_m \]

This can be expressed by a matrix-vector equation

\[ A\b{x} =\b{b} \]

where

\[\begin{split} A = \left(\begin{array}{ccc} a_{11} & \cdots & a_{1n}\\ \vdots & & \vdots\\ a_{m1} & \cdots & a_{mn}\end{array}\right), \quad \b{x} = \left(\begin{array}{c} x_1\\ \vdots\\ x_n\end{array}\right), \quad \b{b} = \left(\begin{array}{c} b_1\\ \vdots\\ b_m\end{array}\right). \end{split}\]

If \(m=n\) and \(A\) is regular, the solution is given by

\[ \b{x} = A^{-1} \b{b}. \]

A = np.array([[1., 2], [3, 4]])
b = np.array([1, 2])
Ainv = np.linalg.inv(A)
print("Ainv =", Ainv)
x = Ainv @ b
print('x = Ainv b =', x)
print('Ax =', A @ x)

Ainv = [[-2.   1. ]
 [ 1.5 -0.5]]
x = Ainv b = [0.  0.5]
Ax = [1. 2.]

If \(A^{-1}\) is used just once, it is more efficient to use a linear euqation solver function.

x = np.linalg.solve(A, b)
print('x = ', x)

x =  [0.  0.5]

Eigenvalues and eigenvectors

With a transformation by a symmetric matrix \(A\), some vectors keep its own direction. Such a vector is called an eigenvector and its scaling coefficient is called the eigenvalue.
Eigenvalues and eigenvectors are derived by solving the equation

\[ A\b{x} = \lambda \b{x} \]

which is equivalent to \( A\b{x} - \lambda \b{x} = (A - \lambda I)\b{x} = 0.\)
Eigenvalues are derived by solving a polynomial equation

\[ \det (A - \lambda I) = 0 \]

You can use linalg.eig() function to numerically derive eigenvalues \(\b{\lambda} = (\lambda_1,...,\lambda_n)\) and a matrix of eigenvectors in columns \(V = (\b{v}_1,...,\b{v}_n)\).

A = np.array([[1, 2], [1, 0.5]])
print(A)
lam, V = np.linalg.eig(A)
print('eval =', lam)
print('evec =', V)

[[1.  2. ]
 [1.  0.5]]
eval = [ 2.18614066 -0.68614066]
evec = [[ 0.86011126 -0.76454754]
 [ 0.51010647  0.64456735]]

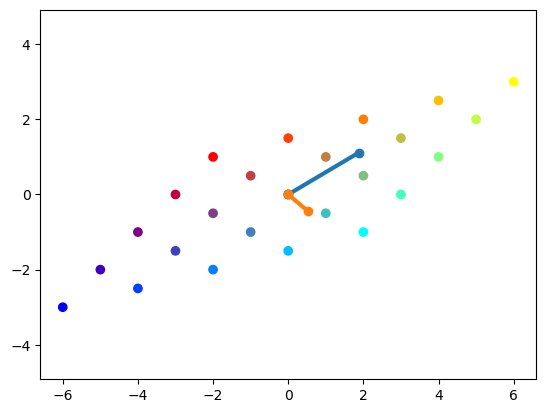

# colorful grid from above
AX = A @ X
plt.scatter(AX[0,:], AX[1,:], c=C)
# Plot eigen vectors scaled by eigen values
for i in range(2):
    plt.plot( [0, V[0,i]], [0, V[1,i]], 'v-', ms=8)
    #plt.plot( [0, lam[i]*V[0,i]], [0, lam[i]*V[1,i]], 'o-', lw=3)
p = plt.axis('equal')
plt.legend(('x',F'v1(l={lam[0]:.2f})',F'v2(l={lam[1]:.2f})'));

For a 2 by 2 matrix

\[\begin{split} A = \pmatrix{a & b \\ c & d}. \end{split}\]

We can analytically derive the eigenvalues from

\[ \det (A - \lambda I) = (a-\lambda)(d-\lambda) - bc = 0 \]

as

\[ \lambda = \frac{a+d}{2} \pm \sqrt{\frac{(a-d)^2}{4}+ bc}. \]

If off-diagonal components \(b\) and \(c\) are in opposite signs, \(\frac{(a-d)^2}{4}+ bc\) can be negative and the eigen values can be complex numbers.

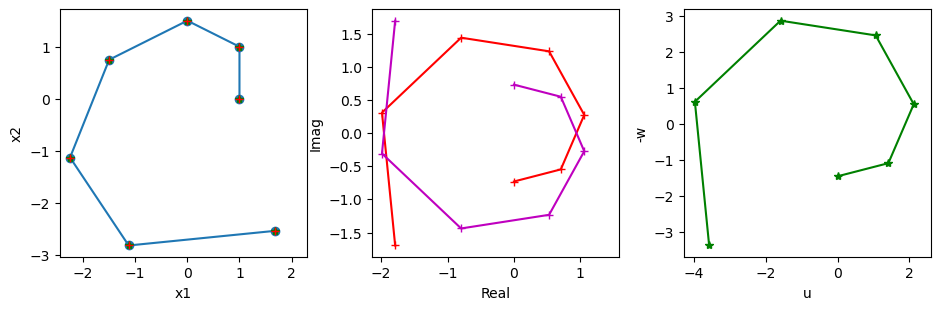

Complex eigenvalues are associated with rotating transformations. Please see the section on Eigenvalues for intuitive explanation.

For a symmetric matrix, \(bc=b^2\ge 0\) so that the eigenvalues are guaranteed to be real.

Eigendecomposition

For a square matrix \(A\), consider a matrix consisting of its eigenvalues on the diagonal

\[ \Lambda = \mbox{diag}(\lambda_1, \cdots, \lambda_n) \]

and another matrix made of their eigenvectors in columns

\[ V = (\b{v}_1, \cdots, \b{v}_n). \]

From

\[\begin{split} AV = (\lambda_1 \b{v}_1, \cdots, \lambda_n \b{v}_n) = (\b{v}_1, \cdots, \b{v}_n) \mat{\lambda_1 & & \\ & \ddots & \\ & & \lambda_n} = V \Lambda, \end{split}\]

if \(V\) is invertible, \(A\) can be represented as

\[ A = V \Lambda V^{-1}. \]

This representation of a matrix is called eigendecomposition or spectral decomposition.

This representation is extremely useful in multiplying \(A\) many times as

\[ A^k = V \Lambda^k V^{-1} = V \mbox{diag}(\lambda_1^k, \cdots, \lambda_n^k) V^{-1} \]

requires only exponentials in the diagonal terms rather than repeated matrix multiplications.

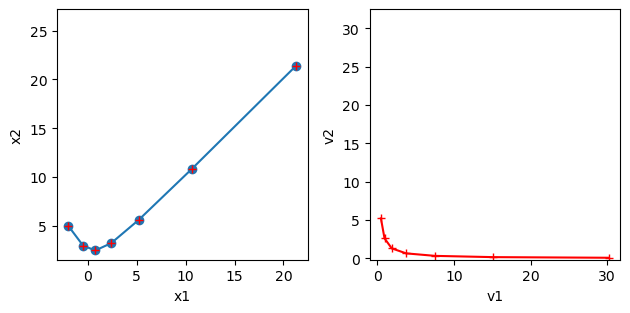

It also helps intuitive understanding of how a point \(\b{x}\) transformed by \(A\) many times as \(A\b{x}, A^2\b{x}, A^3\b{x},...\) would move.

print(A)
lam, V = np.linalg.eig(A)
Vinv = np.linalg.inv(V)
print(V @ np.diag(lam) @ Vinv)

[[1.  2. ]
 [1.  0.5]]
[[1.  2. ]
 [1.  0.5]]

# nth power of A
n = 10
B = A
%time for i in range(1,n): B = B @ A
print(B)
%time C = V @ np.diag(lam**n) @ Vinv
print(C)

CPU times: user 7 µs, sys: 0 ns, total: 7 µs
Wall time: 7.87 µs
[[1463.6953125  1736.12109375]
 [ 868.06054688 1029.66503906]]
CPU times: user 7 µs, sys: 0 ns, total: 7 µs
Wall time: 9.06 µs
[[1463.6953125  1736.12109375]
 [ 868.06054687 1029.66503906]]

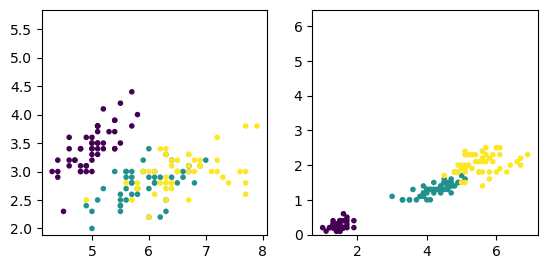

Covariance matrix

For \(m\) samples of \(n\)-dimensional variable \( \b{x} = (x_1,..., x_n)\) we usuall create a data matrix

\[\begin{split} X = \left(\begin{array}{ccc} x_1^1 & \cdots & x^1_n\\ \vdots & & \vdots\\ x^m_1 & \cdots & x^m_n\end{array}\right).\end{split}\]

The covariance \(c_{ij}\) of the components \(x_i\) and \(x_j\) represents how the two variables change together around the mean:

\[ \bar{x}_i = \frac{1}{m} \sum_{k=1}^m x_i^k \]

\[ c_{ij} = \frac{1}{m-1} \sum_{k=1}^m (x_i^k - \bar{x}_i)(x_j^k - \bar{x}_j) \]

The covariance matrix \(C\) consists of the covariances of all pairs of components

\[\begin{split} C = \begin{pmatrix} c_{11} & \cdots & c_{1n}\\ \vdots & & \vdots\\ c_{n1} & \cdots & c_{nn}\end{pmatrix} = \frac{1}{m-1} \sum_{k=1}^m (\b{x}^k - \bar{\b{x}})^T(\b{x}^k - \bar{\b{x}}) \end{split}\]

where \(\bar{x}\) is the mean vector

\[ \bar{\b{x}} = (\bar{x}_1,..., \bar{x}_n) = \frac{1}{m} \sum_{j=1}^m \b{x}^k \]

# Read in the iris data
from sklearn import datasets
iris = datasets.load_iris()
print(iris)

{'data': array([[5.1, 3.5, 1.4, 0.2],
       [4.9, 3. , 1.4, 0.2],
       [4.7, 3.2, 1.3, 0.2],
       [4.6, 3.1, 1.5, 0.2],
       [5. , 3.6, 1.4, 0.2],
       [5.4, 3.9, 1.7, 0.4],
       [4.6, 3.4, 1.4, 0.3],
       [5. , 3.4, 1.5, 0.2],
       [4.4, 2.9, 1.4, 0.2],
       [4.9, 3.1, 1.5, 0.1],
       [5.4, 3.7, 1.5, 0.2],
       [4.8, 3.4, 1.6, 0.2],
       [4.8, 3. , 1.4, 0.1],
       [4.3, 3. , 1.1, 0.1],
       [5.8, 4. , 1.2, 0.2],
       [5.7, 4.4, 1.5, 0.4],
       [5.4, 3.9, 1.3, 0.4],
       [5.1, 3.5, 1.4, 0.3],
       [5.7, 3.8, 1.7, 0.3],
       [5.1, 3.8, 1.5, 0.3],
       [5.4, 3.4, 1.7, 0.2],
       [5.1, 3.7, 1.5, 0.4],
       [4.6, 3.6, 1. , 0.2],
       [5.1, 3.3, 1.7, 0.5],
       [4.8, 3.4, 1.9, 0.2],
       [5. , 3. , 1.6, 0.2],
       [5. , 3.4, 1.6, 0.4],
       [5.2, 3.5, 1.5, 0.2],
       [5.2, 3.4, 1.4, 0.2],
       [4.7, 3.2, 1.6, 0.2],
       [4.8, 3.1, 1.6, 0.2],
       [5.4, 3.4, 1.5, 0.4],
       [5.2, 4.1, 1.5, 0.1],
       [5.5, 4.2, 1.4, 0.2],
       [4.9, 3.1, 1.5, 0.2],
       [5. , 3.2, 1.2, 0.2],
       [5.5, 3.5, 1.3, 0.2],
       [4.9, 3.6, 1.4, 0.1],
       [4.4, 3. , 1.3, 0.2],
       [5.1, 3.4, 1.5, 0.2],
       [5. , 3.5, 1.3, 0.3],
       [4.5, 2.3, 1.3, 0.3],
       [4.4, 3.2, 1.3, 0.2],
       [5. , 3.5, 1.6, 0.6],
       [5.1, 3.8, 1.9, 0.4],
       [4.8, 3. , 1.4, 0.3],
       [5.1, 3.8, 1.6, 0.2],
       [4.6, 3.2, 1.4, 0.2],
       [5.3, 3.7, 1.5, 0.2],
       [5. , 3.3, 1.4, 0.2],
       [7. , 3.2, 4.7, 1.4],
       [6.4, 3.2, 4.5, 1.5],
       [6.9, 3.1, 4.9, 1.5],
       [5.5, 2.3, 4. , 1.3],
       [6.5, 2.8, 4.6, 1.5],
       [5.7, 2.8, 4.5, 1.3],
       [6.3, 3.3, 4.7, 1.6],
       [4.9, 2.4, 3.3, 1. ],
       [6.6, 2.9, 4.6, 1.3],
       [5.2, 2.7, 3.9, 1.4],
       [5. , 2. , 3.5, 1. ],
       [5.9, 3. , 4.2, 1.5],
       [6. , 2.2, 4. , 1. ],
       [6.1, 2.9, 4.7, 1.4],
       [5.6, 2.9, 3.6, 1.3],
       [6.7, 3.1, 4.4, 1.4],
       [5.6, 3. , 4.5, 1.5],
       [5.8, 2.7, 4.1, 1. ],
       [6.2, 2.2, 4.5, 1.5],
       [5.6, 2.5, 3.9, 1.1],
       [5.9, 3.2, 4.8, 1.8],
       [6.1, 2.8, 4. , 1.3],
       [6.3, 2.5, 4.9, 1.5],
       [6.1, 2.8, 4.7, 1.2],
       [6.4, 2.9, 4.3, 1.3],
       [6.6, 3. , 4.4, 1.4],
       [6.8, 2.8, 4.8, 1.4],
       [6.7, 3. , 5. , 1.7],
       [6. , 2.9, 4.5, 1.5],
       [5.7, 2.6, 3.5, 1. ],
       [5.5, 2.4, 3.8, 1.1],
       [5.5, 2.4, 3.7, 1. ],
       [5.8, 2.7, 3.9, 1.2],
       [6. , 2.7, 5.1, 1.6],
       [5.4, 3. , 4.5, 1.5],
       [6. , 3.4, 4.5, 1.6],
       [6.7, 3.1, 4.7, 1.5],
       [6.3, 2.3, 4.4, 1.3],
       [5.6, 3. , 4.1, 1.3],
       [5.5, 2.5, 4. , 1.3],
       [5.5, 2.6, 4.4, 1.2],
       [6.1, 3. , 4.6, 1.4],
       [5.8, 2.6, 4. , 1.2],
       [5. , 2.3, 3.3, 1. ],
       [5.6, 2.7, 4.2, 1.3],
       [5.7, 3. , 4.2, 1.2],
       [5.7, 2.9, 4.2, 1.3],
       [6.2, 2.9, 4.3, 1.3],
       [5.1, 2.5, 3. , 1.1],
       [5.7, 2.8, 4.1, 1.3],
       [6.3, 3.3, 6. , 2.5],
       [5.8, 2.7, 5.1, 1.9],
       [7.1, 3. , 5.9, 2.1],
       [6.3, 2.9, 5.6, 1.8],
       [6.5, 3. , 5.8, 2.2],
       [7.6, 3. , 6.6, 2.1],
       [4.9, 2.5, 4.5, 1.7],
       [7.3, 2.9, 6.3, 1.8],
       [6.7, 2.5, 5.8, 1.8],
       [7.2, 3.6, 6.1, 2.5],
       [6.5, 3.2, 5.1, 2. ],
       [6.4, 2.7, 5.3, 1.9],
       [6.8, 3. , 5.5, 2.1],
       [5.7, 2.5, 5. , 2. ],
       [5.8, 2.8, 5.1, 2.4],
       [6.4, 3.2, 5.3, 2.3],
       [6.5, 3. , 5.5, 1.8],
       [7.7, 3.8, 6.7, 2.2],
       [7.7, 2.6, 6.9, 2.3],
       [6. , 2.2, 5. , 1.5],
       [6.9, 3.2, 5.7, 2.3],
       [5.6, 2.8, 4.9, 2. ],
       [7.7, 2.8, 6.7, 2. ],
       [6.3, 2.7, 4.9, 1.8],
       [6.7, 3.3, 5.7, 2.1],
       [7.2, 3.2, 6. , 1.8],
       [6.2, 2.8, 4.8, 1.8],
       [6.1, 3. , 4.9, 1.8],
       [6.4, 2.8, 5.6, 2.1],
       [7.2, 3. , 5.8, 1.6],
       [7.4, 2.8, 6.1, 1.9],
       [7.9, 3.8, 6.4, 2. ],
       [6.4, 2.8, 5.6, 2.2],
       [6.3, 2.8, 5.1, 1.5],
       [6.1, 2.6, 5.6, 1.4],
       [7.7, 3. , 6.1, 2.3],
       [6.3, 3.4, 5.6, 2.4],
       [6.4, 3.1, 5.5, 1.8],
       [6. , 3. , 4.8, 1.8],
       [6.9, 3.1, 5.4, 2.1],
       [6.7, 3.1, 5.6, 2.4],
       [6.9, 3.1, 5.1, 2.3],
       [5.8, 2.7, 5.1, 1.9],
       [6.8, 3.2, 5.9, 2.3],
       [6.7, 3.3, 5.7, 2.5],
       [6.7, 3. , 5.2, 2.3],
       [6.3, 2.5, 5. , 1.9],
       [6.5, 3. , 5.2, 2. ],
       [6.2, 3.4, 5.4, 2.3],
       [5.9, 3. , 5.1, 1.8]]), 'target': array([0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
       0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
       0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
       1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
       1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,
       2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2,
       2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2]), 'frame': None, 'target_names': array(['setosa', 'versicolor', 'virginica'], dtype='<U10'), 'DESCR': '.. _iris_dataset:\n\nIris plants dataset\n--------------------\n\n**Data Set Characteristics:**\n\n:Number of Instances: 150 (50 in each of three classes)\n:Number of Attributes: 4 numeric, predictive attributes and the class\n:Attribute Information:\n    - sepal length in cm\n    - sepal width in cm\n    - petal length in cm\n    - petal width in cm\n    - class:\n            - Iris-Setosa\n            - Iris-Versicolour\n            - Iris-Virginica\n\n:Summary Statistics:\n\n============== ==== ==== ======= ===== ====================\n                Min  Max   Mean    SD   Class Correlation\n============== ==== ==== ======= ===== ====================\nsepal length:   4.3  7.9   5.84   0.83    0.7826\nsepal width:    2.0  4.4   3.05   0.43   -0.4194\npetal length:   1.0  6.9   3.76   1.76    0.9490  (high!)\npetal width:    0.1  2.5   1.20   0.76    0.9565  (high!)\n============== ==== ==== ======= ===== ====================\n\n:Missing Attribute Values: None\n:Class Distribution: 33.3% for each of 3 classes.\n:Creator: R.A. Fisher\n:Donor: Michael Marshall (MARSHALL%PLU@io.arc.nasa.gov)\n:Date: July, 1988\n\nThe famous Iris database, first used by Sir R.A. Fisher. The dataset is taken\nfrom Fisher\'s paper. Note that it\'s the same as in R, but not as in the UCI\nMachine Learning Repository, which has two wrong data points.\n\nThis is perhaps the best known database to be found in the\npattern recognition literature.  Fisher\'s paper is a classic in the field and\nis referenced frequently to this day.  (See Duda & Hart, for example.)  The\ndata set contains 3 classes of 50 instances each, where each class refers to a\ntype of iris plant.  One class is linearly separable from the other 2; the\nlatter are NOT linearly separable from each other.\n\n.. dropdown:: References\n\n  - Fisher, R.A. "The use of multiple measurements in taxonomic problems"\n    Annual Eugenics, 7, Part II, 179-188 (1936); also in "Contributions to\n    Mathematical Statistics" (John Wiley, NY, 1950).\n  - Duda, R.O., & Hart, P.E. (1973) Pattern Classification and Scene Analysis.\n    (Q327.D83) John Wiley & Sons.  ISBN 0-471-22361-1.  See page 218.\n  - Dasarathy, B.V. (1980) "Nosing Around the Neighborhood: A New System\n    Structure and Classification Rule for Recognition in Partially Exposed\n    Environments".  IEEE Transactions on Pattern Analysis and Machine\n    Intelligence, Vol. PAMI-2, No. 1, 67-71.\n  - Gates, G.W. (1972) "The Reduced Nearest Neighbor Rule".  IEEE Transactions\n    on Information Theory, May 1972, 431-433.\n  - See also: 1988 MLC Proceedings, 54-64.  Cheeseman et al"s AUTOCLASS II\n    conceptual clustering system finds 3 classes in the data.\n  - Many, many more ...\n', 'feature_names': ['sepal length (cm)', 'sepal width (cm)', 'petal length (cm)', 'petal width (cm)'], 'filename': 'iris.csv', 'data_module': 'sklearn.datasets.data'}

X = iris.data
Y = iris.target
m, n = X.shape
print(m, n)

150 4

plt.subplot(1, 2, 1)
plt.scatter(X[:,0], X[:,1], c=Y, marker='.')
plt.axis('square'); plt.xlabel('x1'); plt.ylabel('x2');
plt.subplot(1, 2, 2)
plt.scatter(X[:,2], X[:,3], c=Y, marker='.')
plt.axis('square'); plt.xlabel('x3'); plt.ylabel('x4');

xbar = np.mean(X, axis=0)
print("xbar =", xbar)
dX = X - xbar  # deviation from the mean
C = (dX.T @ dX)/(m-1)
print("C =", C)
# or using the built-in function
np.cov(X, rowvar=False)

xbar = [5.84333333 3.05733333 3.758      1.19933333]
C = [[ 0.68569351 -0.042434    1.27431544  0.51627069]
 [-0.042434    0.18997942 -0.32965638 -0.12163937]
 [ 1.27431544 -0.32965638  3.11627785  1.2956094 ]
 [ 0.51627069 -0.12163937  1.2956094   0.58100626]]

array([[ 0.68569351, -0.042434  ,  1.27431544,  0.51627069],
       [-0.042434  ,  0.18997942, -0.32965638, -0.12163937],
       [ 1.27431544, -0.32965638,  3.11627785,  1.2956094 ],
       [ 0.51627069, -0.12163937,  1.2956094 ,  0.58100626]])

Principal component analysis (PCA)

In taking a grasp of high-dimensional data, it is often useful to project the data onto a subspace where the data vary most.

To do that, we first take the covariance matrix \(C\) of the data, compute its eigenvalues \(\lambda_i\) and eigenvectors \(\b{v}_i\), and project the data onto the subspace spanned by the eigenvectors with largest eigenvalues.
The eigenvectors \(\b{v}_i\) of the covariance matrix is called principal component vectors, ordered by the magnitude of their eigenvalues.

Each data point \(\b{x}\) is projected to the principal component vectors \((\b{v}_1\cdot\b{x}, \b{v}_2\cdot\b{x},...)\) for visualization.

def pca(X):
    """Principal Component Analysis of data matrix X = (x1,...,xn).T"""
    C = np.cov(X, rowvar=False)
    lam, V = np.linalg.eig(C)
    # it is not guaranteed that the eigenvalues are sorted, so sort them
    ind = np.argsort(-lam)  # indices for sorting, descending order
    lams = lam[ind]
    Vs = V[:,ind]
    return lams, Vs

lam, V = pca(X)
plt.plot(np.arange(1,n+1), lam, 'o-')
plt.xlabel('PC'); plt.ylabel('eigenvalue')

Text(0, 0.5, 'eigenvalue')

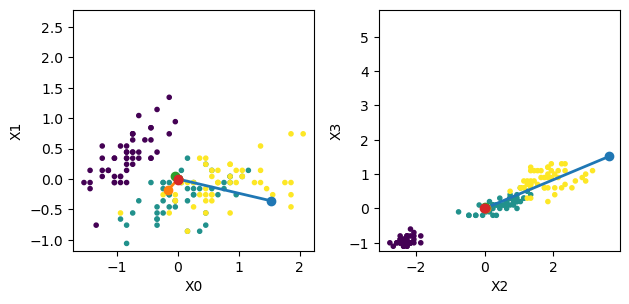

Let us see the principal component vectors in the original space.

zero = np.zeros(n)
# first two components
plt.subplot(1, 2, 1)
plt.scatter(dX[:,0], dX[:,1], c=Y, marker='.')
for i in range(4):
    plt.plot( [0, V[0,i]], [0, V[1,i]], 'v-', markersize=6)
    #plt.plot( [0, lam[i]*V[0,i]], [0, lam[i]*V[1,i]], 'o-', lw=2)
plt.axis('square'); plt.xlabel('x1'); plt.ylabel('x2');
plt.legend(('x','PC1','PC2','PC3','PC4'))
# last two components
plt.subplot(1, 2, 2)
plt.scatter(dX[:,2], dX[:,3], c=Y, marker='.')
for i in range(4):
    plt.plot( [0, V[2,i]], [0, V[3,i]], '^-', markersize=6)
    #plt.plot( [0, lam[i]*V[2,i]], [0, lam[i]*V[3,i]], 'o-', lw=2)
plt.axis('square'); plt.xlabel('x3'); plt.ylabel('x4');
plt.tight_layout()  # adjust space

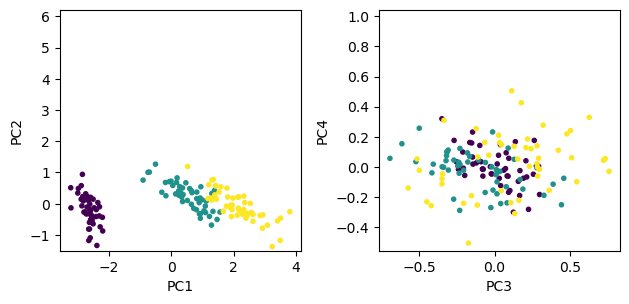

Now let us project the 4D data onto the space spanned by the eigenvectors.

Z = dX @ V  # projection to PC
plt.subplot(1, 2, 1)
plt.scatter(Z[:,0], Z[:,1], c=Y, marker='.')
plt.axis('square'); plt.xlabel('PC1'); plt.ylabel('PC2');
plt.subplot(1, 2, 2)
plt.scatter(Z[:,2], Z[:,3], c=Y, marker='.')
plt.axis('square'); plt.xlabel('PC3'); plt.ylabel('PC4');
plt.tight_layout()  # adjust space

Singular value decomposition (SVD)

For a \((m\times n)\) matrix \(A\), a non-negative value \(\sigma>0\) satisfying

\[ A \b{v} = \sigma \b{u}\]

\[ A^T \b{u} = \sigma \b{v}\]

for unit vectors \(||\b{u}||=||\b{v}||=1\) is called the singular value.
\(\b{u}\) and \(\b{v}\) are called left- and right-singular vectors.

Singular value decomposition (SVD) of a \((m\times n)\) matrix \(A\) is

\[ A = U S V^T = \sum_i \sigma_i \b{u}_i \b{v}_i^T \]

where \(S=\mbox{diag}(\sigma_1,...,\sigma_k)\) is a diagonal matrix made of \(k=\min(m,n)\) singular values,
\(U=(\b{u}_1,...,\b{u}_k)\) is a matrix made of orthogonal left-singular vectors, and \(V=(\b{v}_1,...,\b{v}_k)\) is a matrix made of orthogonal right-singular vectors.

SVD represents a matrix by a weighted sum of outer products of column vectors \(\b{u}_i\) and row vectors \(\b{v}_i\), such as spatial patterns mixed by different time courses.

A = np.array([[0,1,2,3,4], [5,4,3,2,1], [1,3,2,4,3]])
print(A)
U, S, Vt = np.linalg.svd(A, full_matrices=False)
#V = Vt.T
print(U, S, Vt)
U @ np.diag(S) @ Vt

[[0 1 2 3 4]
 [5 4 3 2 1]
 [1 3 2 4 3]]
[[-0.45492565  0.62035527 -0.63890687]
 [-0.65816895 -0.71750629 -0.22803148]
 [-0.59988023  0.3167713   0.7347106 ]] [9.99063921 4.76417727 1.22055035] [[-0.38943704 -0.48918213 -0.40879452 -0.50853961 -0.42815201]
 [-0.686532   -0.27273461 -0.05840793  0.35538947  0.56971614]
 [-0.33218358  0.53508568 -0.40349583  0.46377343 -0.47480808]]

array([[5.89313419e-16, 1.00000000e+00, 2.00000000e+00, 3.00000000e+00,
        4.00000000e+00],
       [5.00000000e+00, 4.00000000e+00, 3.00000000e+00, 2.00000000e+00,
        1.00000000e+00],
       [1.00000000e+00, 3.00000000e+00, 2.00000000e+00, 4.00000000e+00,
        3.00000000e+00]])

U, S, Vt = np.linalg.svd(X, full_matrices=False)
print('S =', S)
plt.plot(U);
plt.legend(('u1','u2','u3','u4'));

S = [95.95991387 17.76103366  3.46093093  1.88482631]

In this example, the first component captures the average pattern and the second component captures the species difference.

plt.subplot(1,4,1)
plt.imshow(X)
plt.title('X ='); plt.axis('off')
plt.subplot(1,4,2)
plt.imshow(U)
plt.title('U'); plt.axis('off')
plt.subplot(1,4,3)
plt.imshow(np.diag(S))
plt.title('S'); plt.axis('off')
plt.subplot(1,4,4)
plt.imshow(Vt)
plt.title('V$^T$'); plt.axis('off');

k = 4
for i in range(k):
    plt.subplot(1,k,i+1)
    plt.imshow(np.outer(U[:,i], Vt[i,:]))
    plt.title('$u_{0} v^T_{0}$'.format(i))
    plt.axis('off');

PCA by SVD

From \(X = U SV^T\) and the orthonormal construction of \(U\) and \(V\), we can see

\[C = \frac{1}{m-1}X^T X = \frac{1}{m-1}V S^2 V^T\]

and

\[C\b{v}_i = \frac{1}{m-1}\sigma_i^2\b{v}_i.\]

Thus columns of \(V\) are principal component vectors and \(\frac{\sigma_i^2}{m-1}\) are their eigenvalues.

# iris data
print('by cov and eig: l =', lam, '\nV =', V)  # computed by eig of covariance matrix
U, S, Vt = np.linalg.svd(dX, full_matrices=False)
print('by SVD: l =', S**2/(m-1),'\nV =', Vt.T)

by cov and eig: l = [4.22824171 0.24267075 0.0782095  0.02383509]
V = [[ 0.36138659 -0.65658877 -0.58202985  0.31548719]
 [-0.08452251 -0.73016143  0.59791083 -0.3197231 ]
 [ 0.85667061  0.17337266  0.07623608 -0.47983899]
 [ 0.3582892   0.07548102  0.54583143  0.75365743]]
by SVD: l = [4.22824171 0.24267075 0.0782095  0.02383509]
V = [[ 0.36138659 -0.65658877  0.58202985  0.31548719]
 [-0.08452251 -0.73016143 -0.59791083 -0.3197231 ]
 [ 0.85667061  0.17337266 -0.07623608 -0.47983899]
 [ 0.3582892   0.07548102 -0.54583143  0.75365743]]
