Empirical Networks

Source: vignettes/empirical_networks.Rmd
empirical_networks.Rmd

Loading the NEXTNetR package

We start with loading the NEXTNetR package. If the package is not already installed, see the website for installation instructions. We also load the ggplot2 and ggpubr packages for plotting and set a nice theme.

Defining networks

To create arbitrary, user-defined networks defined by adjacency lists, NEXTNetR provides adjacencylist_network() and adjacencylist_weightednetwork(). We first use adjacencylist_network() to create an undirected network in which nodes 1, 2, 3, 4 form a clique (i.e. each node is linked to all others) but node 5 is linked only to nodes 1 and 2 and node 6 only to nodes 3 and 4.

nw <- adjacencylist_network(list(
  c(2, 3, 4, 5), # neighbours of node 1
  c(1, 3, 4, 5), # neighbours of node 2
  c(1, 2, 4, 6), # neighbours of node 3
  c(1, 2, 3, 6), # neighbours of node 4
  c(1, 2),       # neighbours of node 5
  c(3, 4)        # neighbours of node 6
), is_undirected=TRUE, above_diagonal=FALSE)

Note that since our network is undirected, the adjacency list we specified is redundant – since the network is undirected, a link from node \(i\) to \(j\) necessarily entails a link from \(j\) back to \(i\). Setting above_diagonal=FALSE signalled to adjacencylist_network() that we explicitly list these redundant links. The same network can be define more succintly by only explicitly listing links from node \(i\) to \(j\) if \(i \leq j\), and leaving it to adjacencylist_network() to add the reverse links, linke so:

nw2 <- adjacencylist_network(list(
  c(2, 3, 4, 5),
  c(3, 4, 5),
  c(4, 6),
  c(6),
  c(),
  c()
), is_undirected=TRUE)

To confirm that the implicitly defined links were indeed added, we check the neighbours of node 4

print(network_neighbour(nw, 4, 1:network_outdegree(nw, 4)))
#> [1] 1 2 3 6
print(network_neighbour(nw2, 4, 1:network_outdegree(nw2, 4)))
#> [1] 1 2 3 6

and see that both networks list nodes 1, 2, 3 and 6 as expected as neighbours of node 4. We can also query the full adjacency lists of these networks with network_adjacencylist()

print(network_adjacencylist(nw))
#> [[1]]
#> [1] 2 3 4 5
#>
#> [[2]]
#> [1] 3 4 5
#>
#> [[3]]
#> [1] 4 6
#>
#> [[4]]
#> [1] 6
#>
#> [[5]]
#> integer(0)
#>
#> [[6]]
#> integer(0)

Note that network_adjacencylist() by default also omit redundant links in the case of undirected networks, i.e. skips links from node \(i\) to \(j\) if \(i > j\). To include all neighbours for all nodes, set above_diagonal=FALSE.

network_adjacencylist() works for all networks, no matter how they were originally defined. We can thus use this function to query the adjacency list of synthetic networks, for example for an Erdős–Rényi network

print(network_adjacencylist(erdos_renyi_network(5, 2.5), above_diagonal=FALSE))
#> [[1]]
#> [1] 2 3 5
#>
#> [[2]]
#> [1] 1 4 5
#>
#> [[3]]
#> [1] 1 4
#>
#> [[4]]
#> [1] 2 3
#>
#> [[5]]
#> [1] 1 2

This makes it possible to modify synthetic networks. For example, we can merge an Erdős–Rényi with a Barabási–Albert network

N <- 100
k <- 10
m <- 5
al_er <- network_adjacencylist(erdos_renyi_network(N, k))
al_ba <- network_adjacencylist(barabasialbert_network(N, m))
al_merged <- mapply(FUN=function(x, y) unique(c(x,y)), al_er, al_ba)
nw_merged <- adjacencylist_network(al_merged)

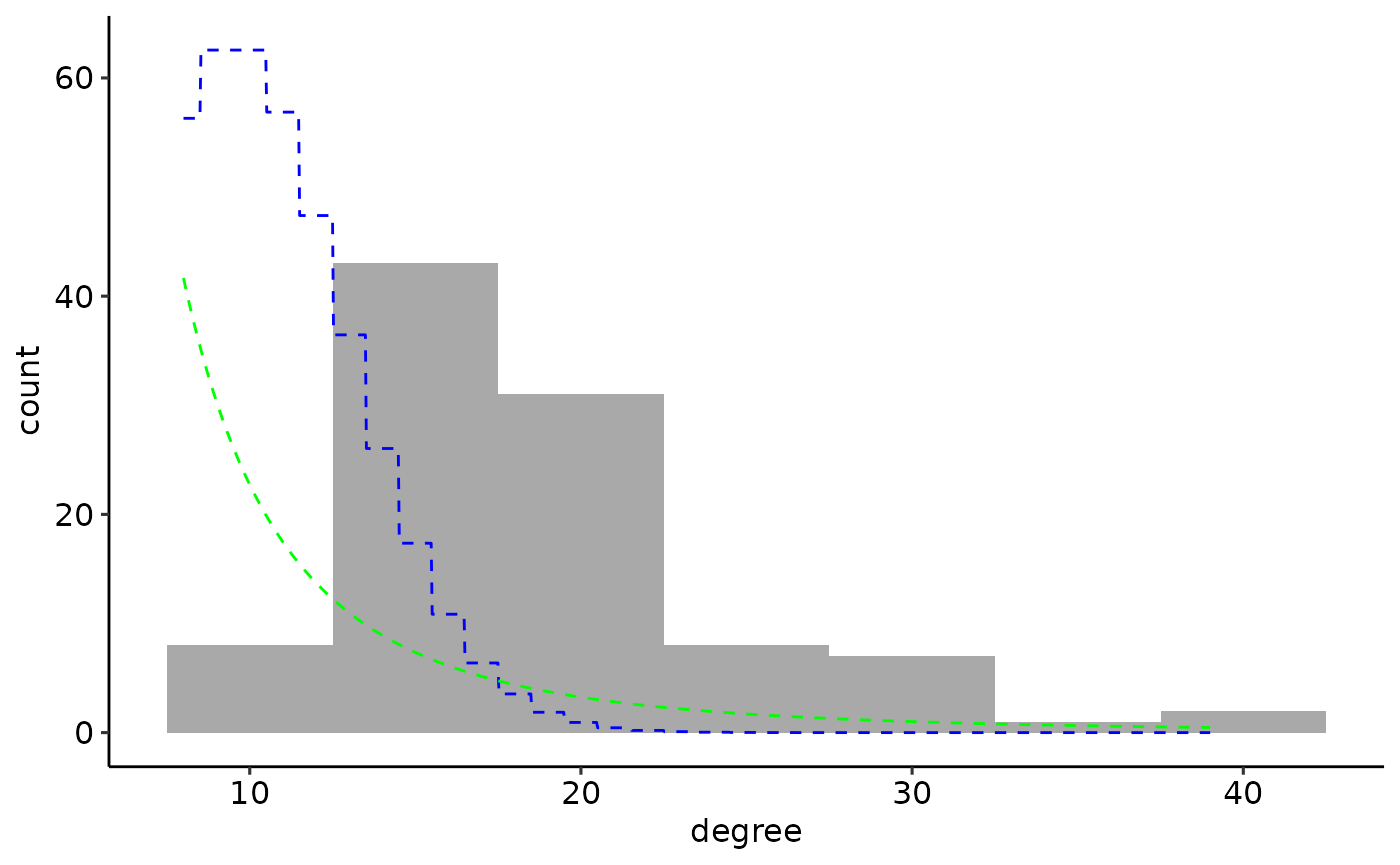

The resulting degree distribution is neither that of an Erdős–Rényi network (blue) nor that of a Barabási–Albert (green)

ggplot(data.frame(degree=network_outdegree(nw_merged, 1:N))) +
  geom_histogram(aes(x=degree, y=after_stat(count)),
                 binwidth=5, fill='darkgrey', color=NA) +
  geom_function(fun=function(n) 5 * N * dpois(round(n), k),
                n=1000, color='blue', linetype="dashed", linewidth=0.5) +
  geom_function(fun=function(n) 5 * N * 2*m*(m+1)/(n*(n+1)*(n+2)),
                n=1000, color='green', linetype="dashed", linewidth=0.5)

Weighted networks

To define a weighted network, the adjacency list must contain a list of weights for every list of neighbours. Instead of a list of vectors, we therefore now pass a list of lists to adjacencylist_weightednetwork(), which each contain two vectors names n for the neighbours and w for the weights.

wnw <- adjacencylist_weightednetwork(list(
  list(n=c(2, 3, 4, 5), w=c(1.5, 2,  2.5, 3)),
  list(n=c(3, 4, 5),    w=c(2.5, 3,  3.5)),
  list(n=c(4, 6),       w=c(3.5, 4.5)),
  list(n=c(6),          w=c(5)),
  list(n=c(), w=c()),
  list(n=c(), w=c())
), is_undirected=TRUE)

We can now query not only the neighbours of node 4, but also the weights of the corresponding links

print(network_neighbour_weight(wnw, 4, 1:network_outdegree(wnw, 4)))
#> $n
#> [1] 1 2 3 6
#>
#> $w
#> [1] 2.5 3.0 3.5 5.0

To query the adjacencylist of weighted networks (no matter how they were created), we can use weighted_network_adjacencylist()

print(weighted_network_adjacencylist(wnw))
#> [[1]]
#> [[1]]$n
#> [1] 2 3 4 5
#>
#> [[1]]$w
#> [1] 1.5 2.0 2.5 3.0
#>
#>
#> [[2]]
#> [[2]]$n
#> [1] 3 4 5
#>
#> [[2]]$w
#> [1] 2.5 3.0 3.5
#>
#>
#> [[3]]
#> [[3]]$n
#> [1] 4 6
#>
#> [[3]]$w
#> [1] 3.5 4.5
#>
#>
#> [[4]]
#> [[4]]$n
#> [1] 6
#>
#> [[4]]$w
#> [1] 5
#>
#>
#> [[5]]
#> [[5]]$n
#> integer(0)
#>
#> [[5]]$w
#> numeric(0)
#>
#>
#> [[6]]
#> [[6]]$n
#> integer(0)
#>
#> [[6]]$w
#> numeric(0)

Loading networks from files

The functions empirical_network() and empirical_weightednetwork() allow networks to be read from files. For unweighted networks, file have the following format

# network.nw
# Files may contains comment lines beginning with '#',
# and an optional header line beginning with non-numeric text
node neighbours ....
# After the optional header, each line starts with a node and lists its
# neighbours, separated by whitespace. The following line thus adds
# links 1 -> 2, 1 -> 3, 1 -> 4, 1-> 5. For undirected networks,
# the reversed edges are added as well.
1 2 3 4 5
# The neighbours of a single node can be split over multiple, possibly
# non-consecutive lines. Here, we add 2 -> 4 and 2 -> 3, 2 -> 5.
2 4
2 3 5
3 4 5
4 6
# Nodes may be skipped, the largest node index defines the network size
6

and are read with

nw3 <- empirical_network(path="network.nw")

This yields the same network as nw and nw2 defined above. The separator is whitespace by default but can be changed to something else, see help(empirical_network). If gzip is installed, gzip-compressed files with extension .gz are supported and piped through gzip to read them.

Weighted networks are supported by empirical_weightednetwork, and have the format

# weighted_network.nw
# Comment and header work like for unweighted networks
# Weightes are specified after each neighbour, separated by a colon (:)
1 2:1.5 3:2 4:2.5 5:3
2 3:2.5 4:3 5:3.5
3 4:3.5 6:4.5
# Weights are summed over all occurences of a specific link
4 6:3
6 4:2
6

To read this file, which defines the same weighted network as wnw above, we do

wnw3 <- empirical_weightednetwork(path="weighted_network.nw")

Again, gzip-compressed files are supported if gzip is installed, and the separators between neighbour-weight pairs and between neighbours and weights can be specified, see help(empirical_weightednetwork). Note that in the example above, link \((4,6)\) now weight \(5\) since the weights of the two occurrences of that link are summed

network_neighbour_weight(wnw3, 4, 4)
#> $n
#> [1] 1
#>
#> $w
#> [1] 2.5

Packaged empirical networks

empirical_network() can download packaged networks directly from the NEXTNet-EmpiricalNetworks repository, which contains a selection of empirical networks from the SNAP (Leskovec and Krevl, 2014), ICON (Clauset et al., 2016) and KONECT (Kunegis, 2013) databases.

We can download and import the “gowalla” network found in the SNAP database with

gowalla_nw <- empirical_network(name='gowalla')
#> Downloading gowalla.gz to ~/.cache/NEXTNetR-EmpiricalNetworks/undirected

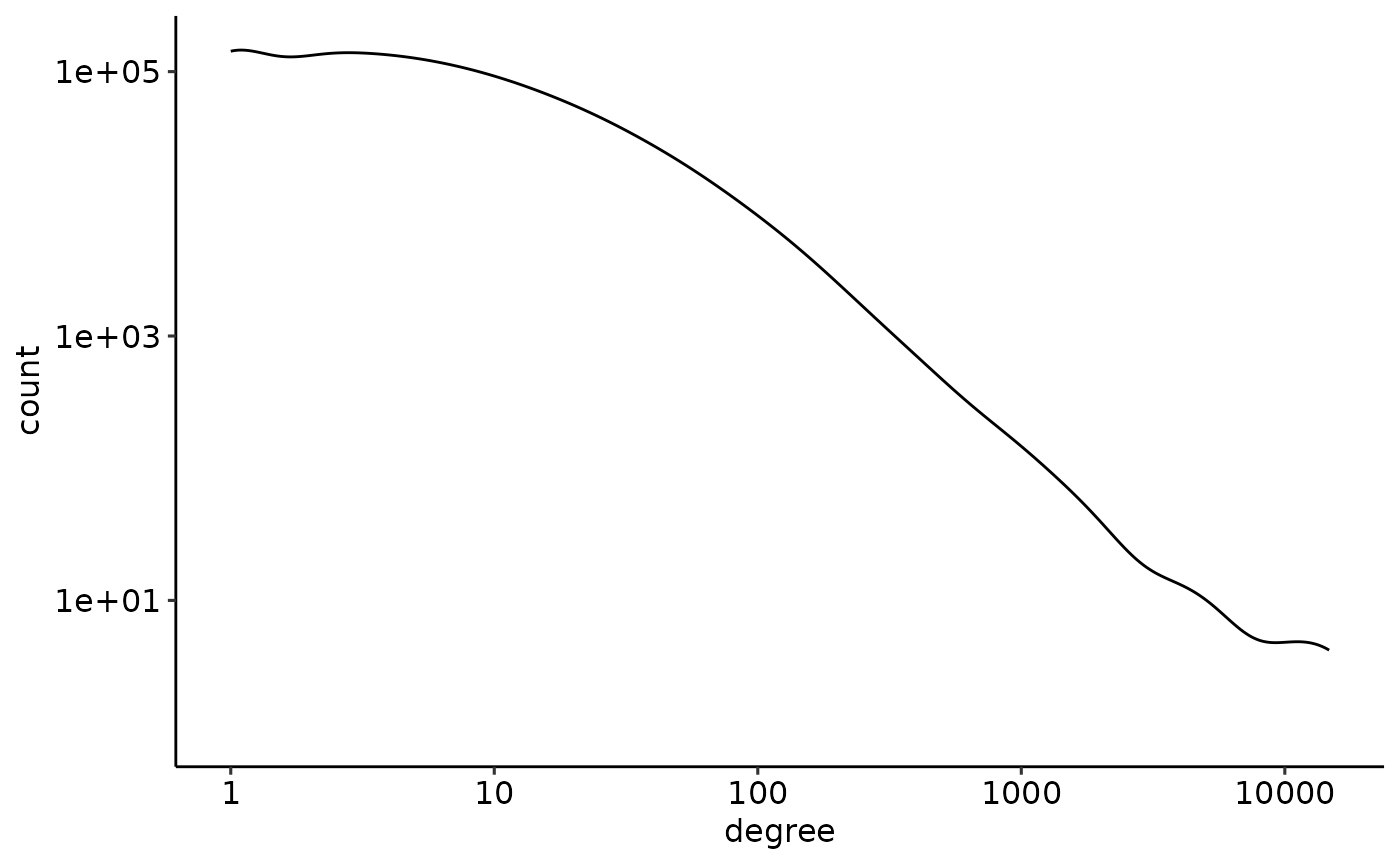

and plot its degree distribution in a double-logarithmic plot

ggplot(data.frame(degree=network_outdegree(gowalla_nw, 1:network_size(gowalla_nw)))) +
  geom_density(aes(x=degree, y=after_stat(count)), bw=0.15) +
  scale_x_log10() +
  scale_y_log10()
