Appendix: Gymnasium

Appendix: Gymnasium#

Gymnasium is a collection of environments for testing reinforcement learning algorithms. It was initially developed by OpenAI, but as the company shifted its focus to large language models, it was left stranded. Now it is maintained by the Farama Foundation.
https://gymnasium.farama.org/
Farama-Foundation/Gymnasium

Gymnasium can be installed by pip or conda. We also use pygame for simple 2D rendering.

pip install gymnasium pygame

import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
import gymnasium as gym

CliffWalking#

Let us try the CliffWalking environment introduced in Barto & Sutton textbook>

# Create a new enviornment
env = gym.make("CliffWalking-v0", render_mode="human") # with animation
# check the observation/action spaces
print(env.spec)
print("observations:", env.observation_space.n)  # 4x12
print("actions:", env.action_space.n)  # 0=up; 1=right; 2=down; 3=left
# Reset the environment state
obs, info = env.reset()
print("observation:", obs)
EnvSpec(id='CliffWalking-v0', entry_point='gymnasium.envs.toy_text.cliffwalking:CliffWalkingEnv', reward_threshold=None, nondeterministic=False, max_episode_steps=None, order_enforce=True, disable_env_checker=False, kwargs={'render_mode': 'human'}, namespace=None, name='CliffWalking', version=0, additional_wrappers=(), vector_entry_point=None)
observations: 48
actions: 4
observation: 36
# Episode with random actions
T = 20
sar = np.zeros((T+1,3))  # state, action, reward
sar[0,0] = obs
for t in range(T):
    # Choose a random action
    action = env.action_space.sample()
    # Environment dynamics
    obs, reward, term, trunc, info = env.step(action)
    sar[t,1:] = [action, reward]; sar[t+1,0] = obs
    if term or trunc:  # terminal stete or timeout
        break

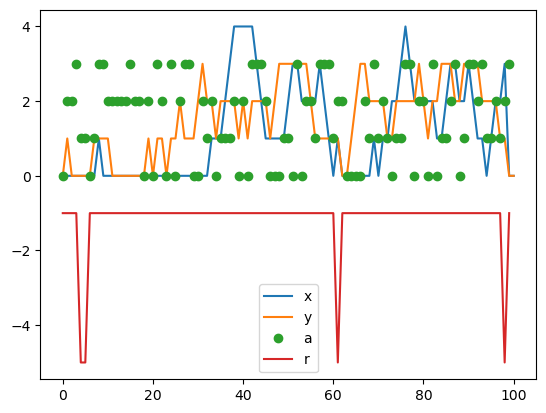

plt.plot(sar[:,0]%12); plt.plot(3-(sar[:,0]//12))  # x, y
plt.plot(sar[:-1,1], "o")  # action
plt.plot(np.maximum(sar[:-1,2],-5))  # reward
plt.legend(['x','y','a','r']);
_images/24d598df30c37fd9c2d2f1c8db0d832e3eb4a8a426f94df8e02151344c930d42.png
# Dispose the environment
env.close()

Q-learning and SARSA#

Let us test Q-learning and SARSA agents.

class RL:
    """Reinforcement learning with gymnasium environment"""

    def __init__(self, environment, agent):
        """After environment=gym.make()"""
        self.env = environment
        self.Ns = environment.observation_space.n
        self.Na = environment.action_space.n
        self.agent = agent(self.Ns, self.Na)

    def episode(self, tmax=50):
        """One episode"""
        # Reset state
        state, info = self.env.reset()
        reward = None
        # Record of state, action, reward
        sar = np.zeros((tmax+1, 3))
        sar[0,0] = state
        # Repeat interactoin
        for t in range(0, tmax):
            # take an action and learn
            action = self.agent.step(state, reward)
            # environmental dynamics
            state, reward, term, trunc, info = self.env.step(action)
            sar[t,1:] = [action, reward]
            sar[t+1,0] = state  # new state
            if term or trunc:
                # learn from terminal reward
                self.agent.step(state, reward)
                break
        self.sar = sar[:t+2]
        return self.sar

    def run(self, nrun=10, tmax=50):
        """Multiple runs of episodes"""
        Return = np.zeros(nrun)
        for n in range(nrun):
            r = self.episode(tmax)[:,-1]  # reward sequence
            Return[n] = sum(r)
        return Return
class QAgent():
    """Class for a Q-learning/SARSA agent"""

    def __init__(self, nstate, naction):
        self.Ns = nstate   # number of states
        self.Na = naction  # number of actions
        # allocate Q table
        self.Q = np.zeros((nstate, naction))
        # default parameters
        self.alpha = 0.1  # learning rate
        self.beta = 1.0   # inverse temperature
        self.gamma = 0.9  # discount factor
        self.onpolicy = False  # Q-learning

    def boltzmann(self, q):
        """Boltzmann selection"""
        pr = np.exp( self.beta*q)   # unnormalized probability
        pr = pr/sum(pr)    # probability
        return np.random.choice(len(pr), p=pr)

    def step(self, state, reward=None):
        """learn by reward and take an action"""
        # Boltzmann action selection
        action = self.boltzmann( self.Q[state,:])
        if reward != None:
            # TD error: self.state/action retains the previous ones
            Qnew = self.Q[state,action] if self.onpolicy else max(self.Q[state,:])
            delta = reward + self.gamma*Qnew - self.Q[self.state,self.action]
            # Update the value for previous state and action
            self.Q[self.state,self.action] += self.alpha*delta
        # Boltzmann action selection
        self.action = self.boltzmann( self.Q[state,:])
        # remember the state
        self.state = state
        self.action = action
        return self.action
# CliffWalking environment and Q-learning agent
env = gym.make('CliffWalking-v0', render_mode='rgb_array')
cwql = RL(env, QAgent)
# run an episode
sar = cwql.episode(100)
plt.plot(sar[:,0]%12); plt.plot(3-(sar[:,0]//12)) # x, y
plt.plot(sar[:-1,1], 'o')  # action
plt.plot(np.maximum(sar[:-1,2],-5)) # reward
plt.legend(['x','y','a','r']);
_images/271bb260c6cdf9ffe466283cf4b20a25af81fa9d564123f39ea8077f7c03651f.png
def Qmap(Q, w, h, a=(0,1,2,3)):
    """2D map of action values
    action index:(N,E,S,W)"""
    Q4 = np.zeros((h,w,3,3)) # 4D array
    Q4[:,:,0,1] = Q[:,a[0]].reshape((h,w))  # N
    Q4[:,:,1,2] = Q[:,a[1]].reshape((h,w))  # E
    Q4[:,:,2,1] = Q[:,a[2]].reshape((h,w))  # S
    Q4[:,:,1,0] = Q[:,a[3]].reshape((h,w))  # W
    Q2 = np.transpose(Q4, (0,2,1,3))
    plt.imshow(Q2.reshape((h*3, w*3)), extent=(-.5,w-.5,h-.5,-.5))
    plt.colorbar(shrink=0.4);
def track(s, w):
    """show the state track in 2D"""
    x = s%w; y = s//w
    plt.plot(x, y-np.linspace(0,0.2,len(y)), lw=0.5, c='r') # gradually shift up

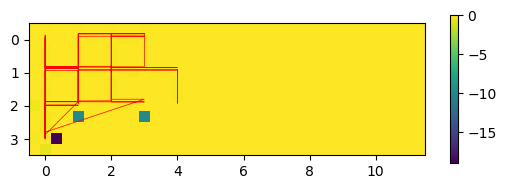

Qmap(cwql.agent.Q, 12, 4)
track(cwql.sar[:,0], 12)
_images/9bf7915111e6ea2b306083cb6ad346cddc77d6dbb9495d400c0d89663920d17b.png
# repeat
R = cwql.run(nrun=1000, tmax=100)
plt.plot(R);
plt.xlabel('episode'); plt.ylabel('return');
_images/99c4c399b299ea6b918271f41e01916ef74a12d2737d61d08a8d59dece51b992.png

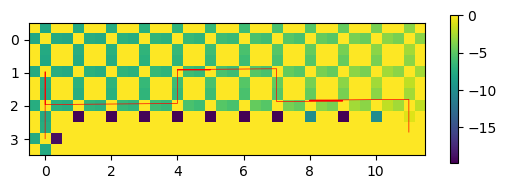

Qmap(cwql.agent.Q, 12, 4)
track(cwql.sar[:,0], 12)
_images/7e0ea07c113786630566cb169c7ce86d4d08c0d30a8970d953665961ab1fc2a7.png
# CliffWalking environment and SARSA agent
env = gym.make('CliffWalking-v0', render_mode='rgb_array')
cwsa = RL(env, QAgent)
cwsa.agent.onpolicy = True
# repeat
R = cwsa.run(nrun=1000, tmax=100)
plt.plot(R);
plt.xlabel('episode'); plt.ylabel('return');
_images/9222af2c6c85ff5b575c366b4dfa8e9d4c9e7245c49efdbd70b1b9c042baf90c.png
Qmap(cwsa.agent.Q, 12, 4)
track(cwsa.sar[:,0], 12)
_images/1fb25bf9ca664952fb365913f05d3188f8ac9f2681461eeb69b5e739449005f1.png

Stable baseline#

A goodness of Gymnasium is that there are many RL algorithms tested and shared by the community. There are several well curated collectioin sites, such as
