Getting Started

Set Up

Installation

Download the latest released version of NEXTNetPy-v\<version>-pkg.tar.gz and install with

pip install NEXTNetPy-v<version>-pkg.tar.gz

Since NEXT-Net is implemented in C++, a C++ compiler is required to install NEXTNetPy. Alternatively, if Git is available, the latest released version of NEXTNetPy can be downloaded, built and installed with

git clone --recurse-submodules --branch latest-release https://github.com/oist/NEXTNetPy.git
cd NEXTNetPy
pip install .

How to Use

NEXT-Net allows users to simulate disease spread using various models. Below is an example of running a SIR simulation on a Barabási-Albert random graph using networkx.

Example: SIR Simulation on a Barabási-Albert Graph

Here is an example of how to run a SIR simulation on a Barabasi-Albert random graph using networkx.

import nextnet as nn
import networkx as nx
import matplotlib.pyplot as plt

n = 10**5 # size of the network
m = 1 # number of edges added per node
graph_nx = nx.barabasi_albert_graph(n,m)

# convert network to a NextNet object.
graph = nn.networkx(graph_nx)


# Define the distribution for the infection times (Gamma distributed)
MEAN_INFECTION = 5
VARIANCE_INFECTION = 1
psi = nn.transmission_time_gamma(MEAN_INFECTION,VARIANCE_INFECTION)

# Define the distribution for the recovery times
MEAN_RECOVERY = 14
VARIANCE_RECOVERY= 3
rho = nn.transmission_time_lognormal(MEAN_RECOVERY,VARIANCE_RECOVERY)

# Define the simulation object
sim = nn.simulation(graph,psi,rho,SIR=True)

# Add initial infections (node 0 infected at time t=0)
initial_infected = [(0,0)]
sim.add_infections(initial_infected)

# Set up random generator
seed = 0
rng = nn.rng(seed)

# Run simulation
results = sim.run(engine=rng)

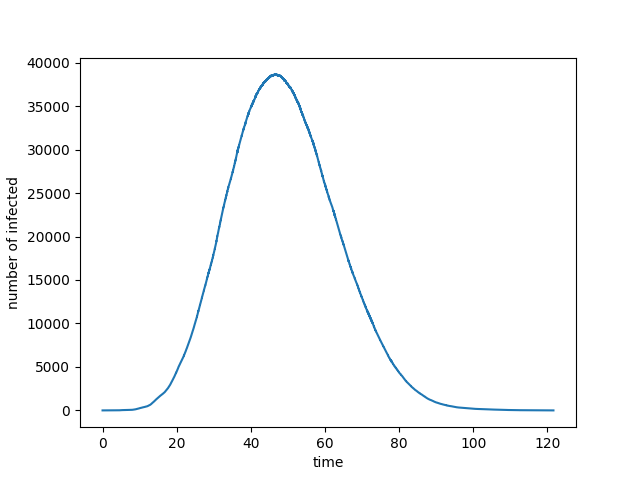

# Plot results
plt.plot(results["time"],results["infected"])
plt.xlabel("time")
plt.ylabel("number of infected")
plt.show()
Image missing

For more advanced use cases and additional features, refer to the full documentation.
